For corrugated roofing: roof tiles, profiled sheet metal and other roofing materials with a profile height of up to 45 mm.
Suitable for pitches from 10° to 75°
Version with lead apron
![EZA-P_ E04 - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Ko%2525C5%252582nierze%252520specjalne%252520do%252520zmiany%252520k%2525C4%252585ta%2FEZA-P_E04%2Feza-p-e04-02.webp&w=1920&q=75)
Flashing EZA-P for corrugated roofing
The EZA-P flashing is designed for roof windows installed on low-pitch roofs, starting from 10°. The EZA-P flashing is used for profiled roofing with a profile height of up to 45 mm, such as ceramic and concrete tiles, trapezoidal sheets and metal roof tiles. The flashing increases the installation angle by 10°, allowing roof windows to be installed on roofs with a pitch lower than the minimum required for a roof window. Equipped with a lead apron, it ensures a tight and aesthetic connection with the roof. The flashing is available in three colours – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – which makes it easy to match with roofs and FAKRO windows.
![EZA-P_ E04 - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Opisy%2F03.webp&w=1920&q=75)
Assistance with installation
The installation of the EZA-P flashing is simple and quick – the system components fit precisely to the window and profiled roofing, which facilitates the roofer's work and guarantees a tight connection. With the use of special brackets, it is possible to install the window at an additional 10° in relation to the roof slope, improving the functionality of the attic. The flashing is designed for the installation of a single window as standard, but is also available in modular versions for combinations. The installation range covers roofs with pitches ranging from 10° to 75°, so it is not only suitable for low-pitched roofs.
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.
Corrugated roofing
The flashing designed for corrugated roofing ensures a tight and durable connection between the roof window and the roof surface made of tiles or profiled sheet metal. This universal solution can be used with all types of roofing with a profile of up to 45 mm. The system design effectively drains water and protects against snow and dust, while harmoniously blending in with the aesthetics of the roof, emphasising its consistent line.
A design refined in every detail

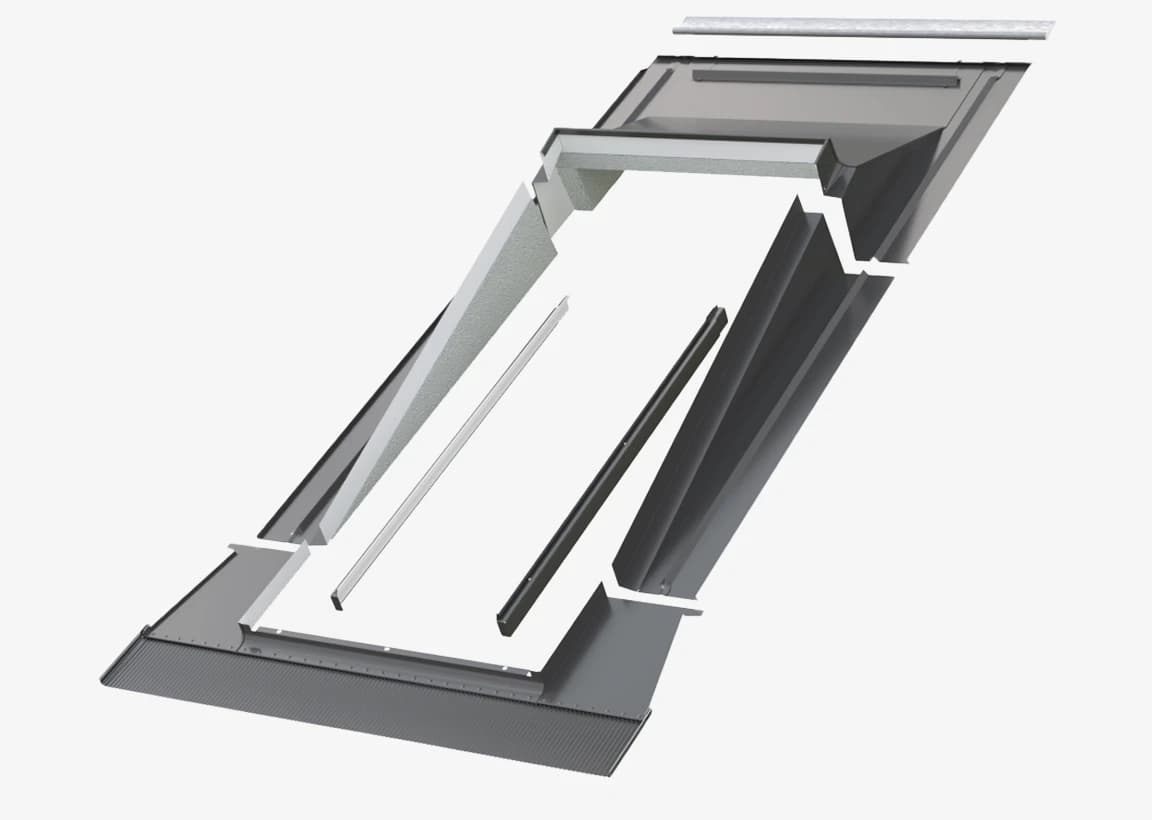

The EZA-P flashing is primarily intended for low-pitch roofs covered with profiled roofing materials, such as ceramic or concrete tiles, trapezoidal sheet metal or metal roof tiles with a profile height of up to 45 mm. It consists of lower, upper and side elements as well as frame side covering profiles. The lower element, glued with plastic compound, guarantees tight adhesion to the roofing, and factory-applied sealing wedges protect against dust, leaves and snow. The drainage gutter effectively drains condensation from the underlay film outside the window. The clever design ensures a durable, aesthetic and weather-resistant connection with the roof slope.
Characteristic features of flashings
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
