For flat roofing: roofing felt, bitumen shingles, flat sheet metal, slate up to 10 mm (2 layers of 5 mm each)
Suitable for pitches from 10° to 75°
![ESA_E05 - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Ko%2525C5%252582nierze%252520specjalne%252520do%252520zmiany%252520k%2525C4%252585ta%2FESA_E05%2Fesa-e05-02.webp&w=1920&q=75)

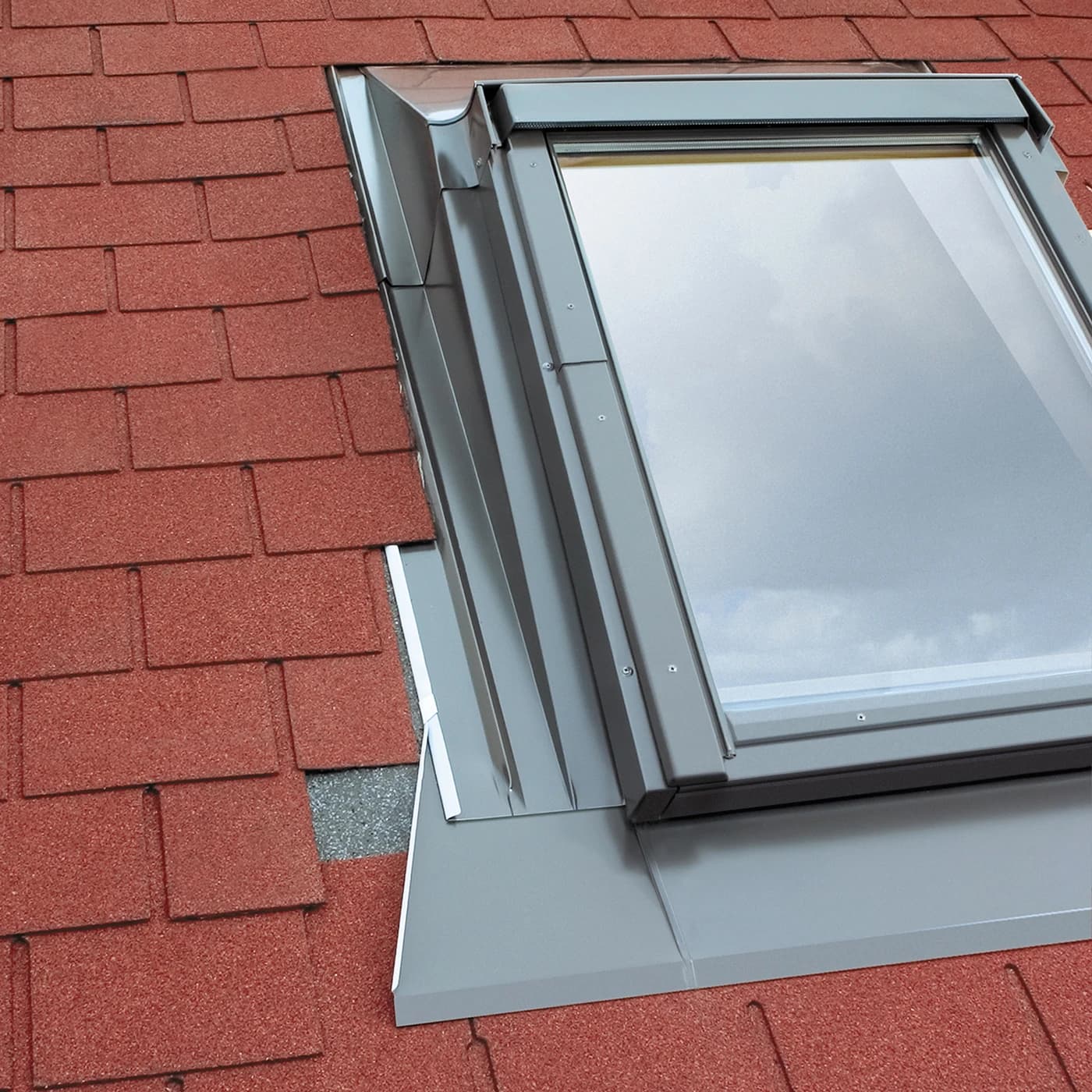

Flashing ESA for flat roofing
The ESA flashing is designed for roof windows installed on low-pitch roofs, starting from 10°. It ensures a tight connection with flat roofing materials such as roofing felt, bitumen shingles or slate. The total thickness of the roofing material required for the flashing to work properly is max. 10 mm (2 x 5 mm). The flashing increases the installation angle by 10°, allowing roof windows to be installed on roofs with a pitch lower than the minimum required for a roof window. The flashing is available in three colours – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – making it easy to match the roof and FAKRO windows.
![ESA_E05 - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Opisy%2F03.webp&w=1920&q=75)
Assistance with installation
The installation of the ESA flashing is simple and quick – the system components fit precisely to the window and flat roofing, which facilitates the roofer's work and guarantees a tight connection. With the use of special brackets, it is possible to install the window at a greater angle to the roof slope, improving the functionality of the attic. The flashing is designed for the installation of a single window as standard, but is also available in modular versions for combinations. The installation range covers roofs with pitches ranging from 10° to 75°, so it is not only suitable for low-pitched roofs.
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.
Flat roofing
The flashing designed for flat roofing ensures a tight and aesthetic connection between the roof window and the roof surface made of roofing felt, bitumen shingles, flat sheet metal or slate up to 10 mm thick (2 layers of max. 5 mm each). With its precise design, it guarantees reliable protection against water and wind, while maintaining the visual integrity of the roof, emphasising its uniform form.
A design refined in every detail
The ESA flashing is primarily designed for low-pitch roofs covered with flat roofing materials such as roofing felt, bitumen shingles or slate up to 10 mm thick. It consists of lower, upper and side elements as well as frame side covering profiles. The lower element is glued with plastic compound and fits tightly to the roofing, which facilitates installation and guarantees a high level of tightness of the connection. The drainage gutter effectively drains water vapour condensation from the underlay film outside the window, ensuring a durable and aesthetic connection with the roof surface.
Characteristic features of flashings
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
