Basic flashings

ESV-T Thermo _X00

See where to buy this product
Size:

For flat roofing: roofing felt, bitumen shingles, flat sheet metal, slate up to 10 mm (2 layers of 5 mm each)

Suitable for roofs with pitches from 15° to 90°

Thermo version with additional insulation

ESV-T Thermo _X00
ESV-T Thermo _X00 - Descriptions[0]

Flashing ESV-T Thermo _X00 for flat roofing

The ESV-T Thermo _X00 flashing is an ideal solution for FAKRO roof windows installed in flat roofing materials – roofing felt, bitumen shingles, flat sheet metal or slate. With additional insulation, it improves the heat transfer coefficient by up to 15%, depending on the window type, and reduces thermal bridges and heat loss. The system design and factory seals ensure quick installation and durable protection against water, snow and wind. Three colours to choose from – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – guarantee a consistent match with FAKRO windows and roof surfaces. This ensures tightness, warmth and aesthetics for years to come.

ESV-T Thermo _X00 - Descriptions[1]

Assistance with installation

The installation process of the ESV-T Thermo _X00 flashing is simple and quick – the system components fit precisely to the window and roofing, which facilitates the roofer's work and minimises the risk of leaks. It is designed for single window installation as standard, but is also available in modular versions for combinations. The installation range covers roofs with pitches from 15° to 90° (N, V) and 20° to 90° (J), making it suitable for most roof structures.

See the details of this product

Uniform roof aesthetics

FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.

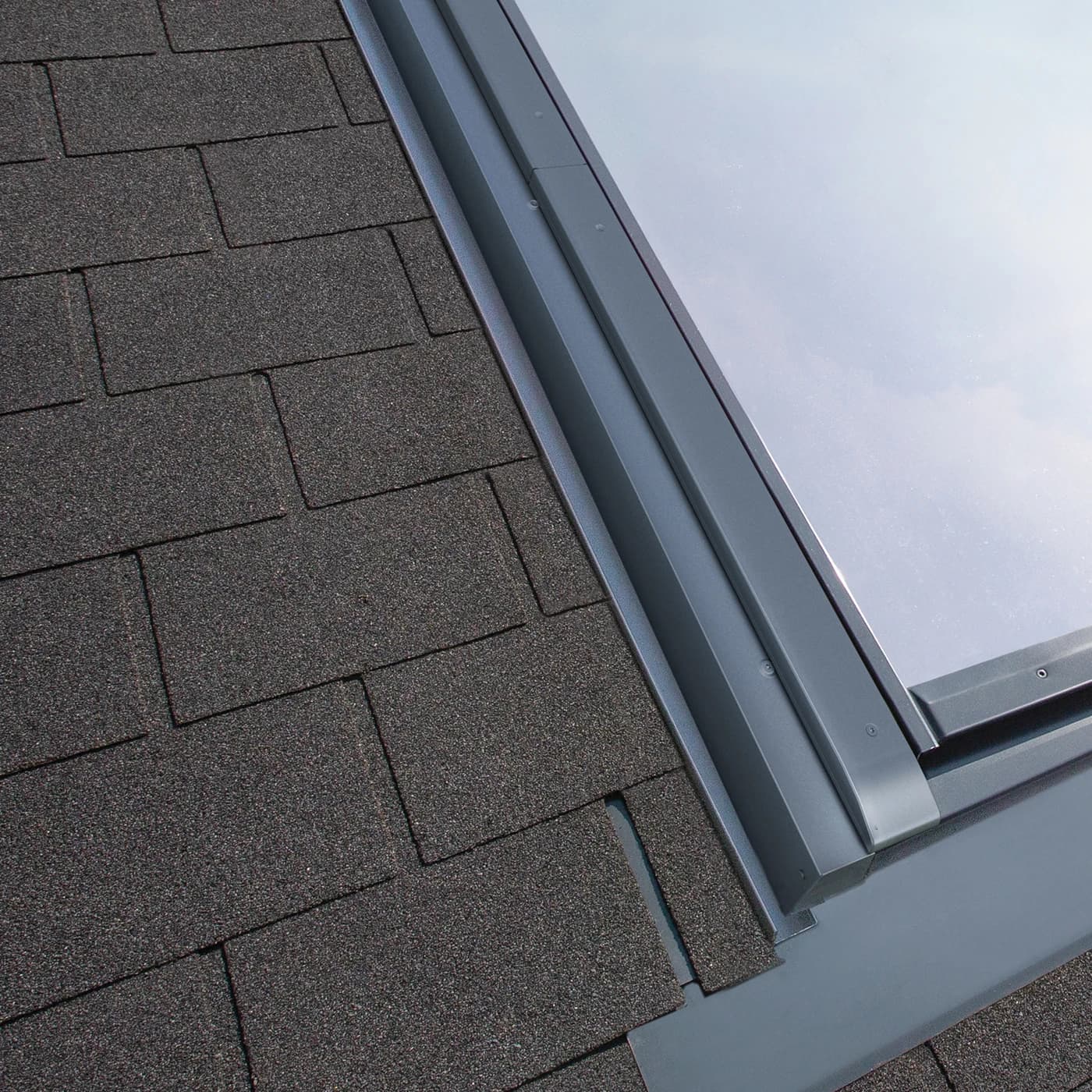

Flat roofing

The flashing designed for flat roofing ensures a tight and aesthetic connection between the roof window and the roof surface made of roofing felt, bitumen shingles, flat sheet metal or slate up to 10 mm thick (2 layers of max. 5 mm each). With its precise design, it guarantees reliable protection against water and wind, while maintaining the visual integrity of the roof, emphasising its uniform form.

A design refined in every detail

The ESV-T Thermo _X00 flashing consists of four main elements: bottom, top and two side elements, supplemented with the the frame side covering profiles. The bottom element is glued from below with a plastic compound, which allows for permanent adhesion to the roof covering and ensures high tightness of the connection.

Thermo flashing

The Thermo version of the flashing features an additional layer of thermal insulation made of flexible insulating material, which tightly adheres to the frame and creates a closed thermal insulation frame. This solution improves the heat transfer coefficient by up to 15%, depending on the window type, and reduces the formation of thermal bridges and heat loss.

Characteristic features of flashings

Our products stand out where it really counts. Discover the features that make them reliable and built to last.

Three installation depths

FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.

High-quality materials

FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.



ESV-T Thermo _X00 specification

All parameters apply to the selected size (46x78) when used with original installation accessories.
Type
Flashing type
Thermo
Flashing application
For roof window, For escape window, For balcony window
Roof covering type
Flat up to 10 mm (2 x 5 mm) (S)
Dimensions
Flashing size W x H
46x78 cm
Material and appearance
Apron material
No apron
Equipment and accessories
Main components
Standard upper element, Standard lead apron, Standard right side, Standard left side, Frame side covering profiles_standard, pkdo_stand
Additional components
Installation set, Fitting instructions, Hooks
Installation
Window installation depth
V
Maximum roof covering profile height
10
Min. roof pitch
15 °
Max. roof pitch
90 °
Transport information
Product weight
2.15 kg
Packaging width
0.325 m
Packaging length
1.265 m
Packaging height
0.107 m

See which accessories fit this product

FGP-X P50 APMX
Balcony windowsFGP-X P50 APMX
FGU-X P50 AUMX
Balcony windowsFGU-X P50 AUMX
FGP-V P50 APMX
Balcony windowsFGP-V P50 APMX
See all matching roof windows

Instructions and files to download

Certificates and declarations

For professionals

Logistics information

Product code
884P46
Commercial size (W x H)
46x78 cm
Installation size (W x H)
46x78 cm
Number of products per pallet
21 szt.
