Balcony windows

FGW-V P50 AWMX

See where to buy this product
Size:

Glazing unit P50 (Uw =1.1 W/m²K with dedicated EHV-AT Thermo flashing)

Easy-to-clean coating

Very good sound insulation Rw=37dB

Air inlet

FGW-V P50 AWMX
FGW-V P50 AWMX - Descriptions[0]
FGW-V P50 AWMX - Descriptions[1]
FGW-V P50 AWMX - Descriptions[3]

See the details of this product

External cladding

The external cladding was designed in cooperation with the Institute of Industrial Design. Its modern, minimalist form emphasises the aesthetics of the window and harmonises with the roof line. The anthracite colour (RAL 7016) fits perfectly with current architectural trends. The colour consistency of the cladding, accessories and flashings creates a harmonious, elegant set that is resistant to weather conditions.

Get inspired by FAKRO

Looking for ideas? Explore our gallery to see how our products work in real spaces.

Key features

Our products stand out where it really counts. Discover the features that make them reliable and built to last.

topSafe system

The topSafe system enhances security thanks to reinforced window construction and resistance to break-in attempts or accidental opening, helping to enhance your family's sense of safety and comfort at home.

thermoPro technology

The thermoPro technology supports the window's thermal insulation performance, helping to reduce heat loss in winter and limit indoor heat build-up during summer. When installed correctly, it may contribute to improved thermal comfort and more efficient energy use.

Environmentally conscious solution

The window is manufactured from FSC-certified wood and finished with water-based coatings.

FGW-V P50 AWMX specification

All parameters apply to the selected size (78x255) when used with original installation accessories.
Dimensions
Commercial size (W × H)
78x255 cm
Window frame clear opening width
688 mm
Window frame clear opening height
2456 mm
Window sash clear opening width
599 mm
Window sash clear opening height
1411 mm
Window reveal clear opening width
725 mm
Window reveal clear opening height
2489 mm
Opening angle for cleaning
180 °
Material and appearance
Construction type
Balcony
Window colour
Pine - white W
Window cladding colour
Anthracite RAL 7016
Window material
Vacuum impregnated pinewood
Cladding material
Aluminium
Lacquer colour
biały RAL9003
Lacquer type
Acrylic
Number of lacquer coats
2
Opening and control
Opening method
top hung
Control system
Manual
Solar power supply
No
Thermal insulation
Number of seals
4 szt.
thermoPro
thermoPRO
Thermal transmittance coefficient Uw
1.2 W/m2K
Airtightness class (air permeability)
Class 4
Safety
Safety level
topSafe
Wind load resistance
npd
Impact resistance
Class 3 - 450 mm
Watertightness
9A
Acoustic insulation
Sound reduction index Rw
37 dB
Sound reduction index Ra1
36 dB
Sound reduction index Ra2
34 dB
Equipment and accessories
Number of handles
1 szt.
Air inlet
Yes
Installation
Installation depth
N, V
Installation location
Rafters or battens
Roof pitch [min.–max.]
30° - 55°
Transport information
Product weight
109 kg
Package width
0.8 m
Package length
2.62 m
Package height
0.205 m
Packaging method
Tied with transportation belts

See which accessories fit this product

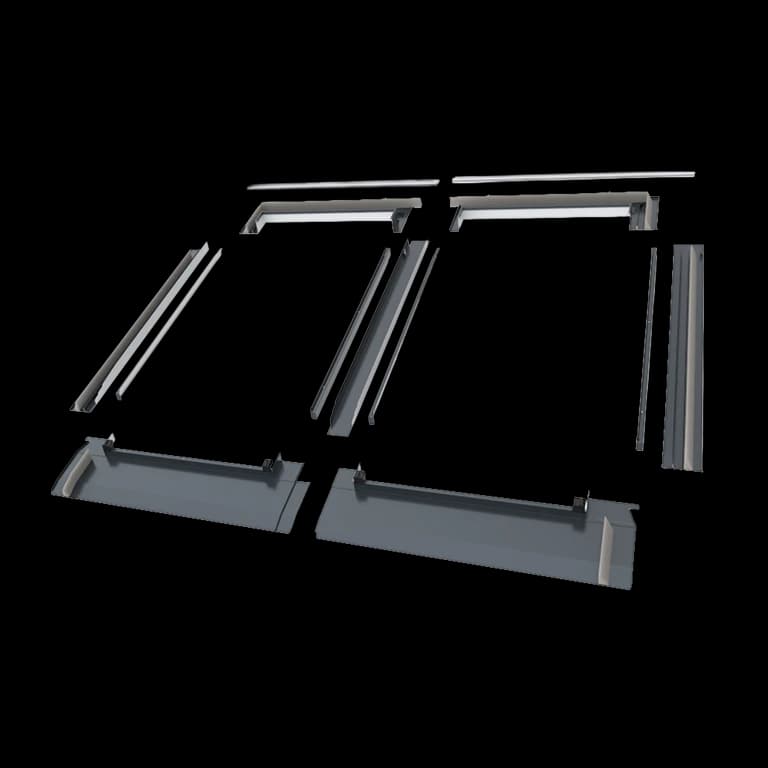

EZV-F _X21
Flashings for vertical and horizontal window combinationsEZV-F _X21

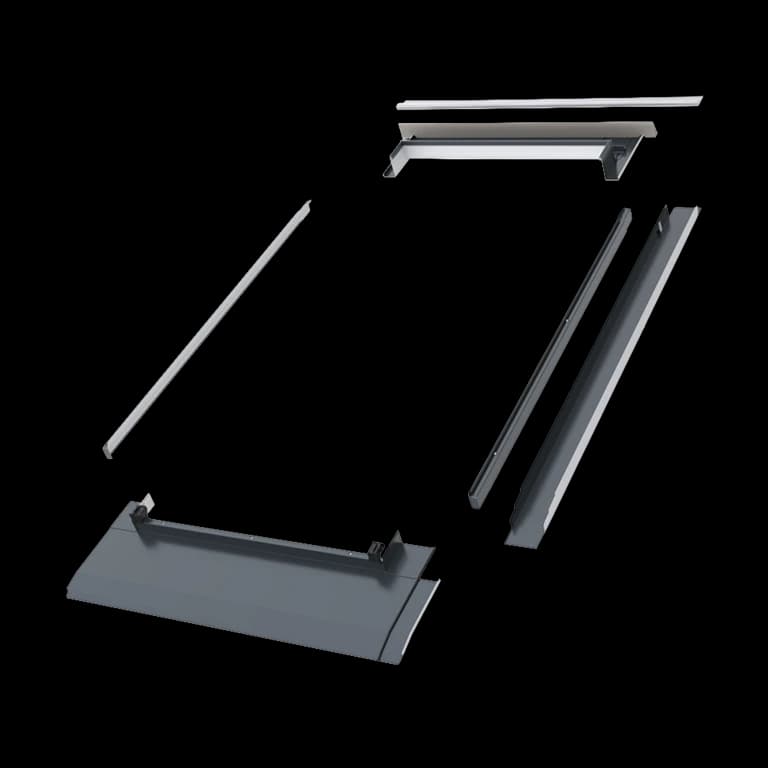

EZV-F _X02
Flashings for vertical and horizontal window combinationsEZV-F _X02

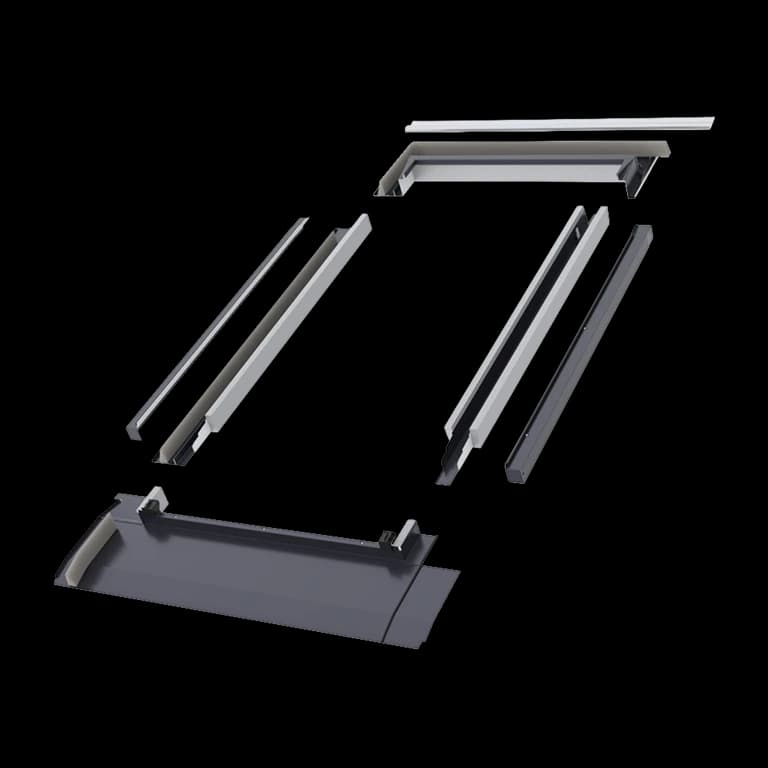

EZV-FT _X01
Flashings for vertical and horizontal window combinationsEZV-FT _X01
See all matching flashings

Instructions and files to download

Instructions

Certificates and declarations

  • 06MWP50_FGP_V_P50_19.02.2024_EN.pdf
    PDF (138 KB) | 19.02.2024
    Download
  • EPD FAKRO okna dachowe drewniane.pdf
    PDF
    Download
  • Swiadectwo EPD - okna drewniane dachowe.pdf
    PDF
    Download

For professionals

Logistics information

Item number
87F2CD
Commercial size (W × H)
78x255 cm
Installation size (W × H)
78x255 cm
Number of products per pallet
3 szt.

Technical drawings

  • FGU-V P50 AUMX PL FAKRO.dwg
    VND.DWG
    Download
  • FGU-V P50 AUMX PL FAKRO.pdf
    PDF
    Download
  • LOD100-Windows_Roof-Windows_FAKRO_Balcony-window-FGW-V-P50-AWMX.rfa
    CDFV2
    Download
  • Loaded-Windows_Roof-Windows_FAKRO_Balcony-window-FGW-V-P50-AWMX.rfa
    CDFV2
    Download

Instructions

  • installation_instructions_NC_1JH_FGP-V_mobileJPG.pdf
    PDF
    Download
