For high-profile roofing: roof tiles, profiled sheet metal and other roofing materials with a profile height of up to 90 mm.
Suitable for pitches from 10° to 75°
Version with lead apron
![EHA-P E06 - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Ko%2525C5%252582nierze%252520specjalne%252520do%252520zmiany%252520k%2525C4%252585ta%2FEHA-P_E06%2Feha-p-e06-02.webp&w=1920&q=75)

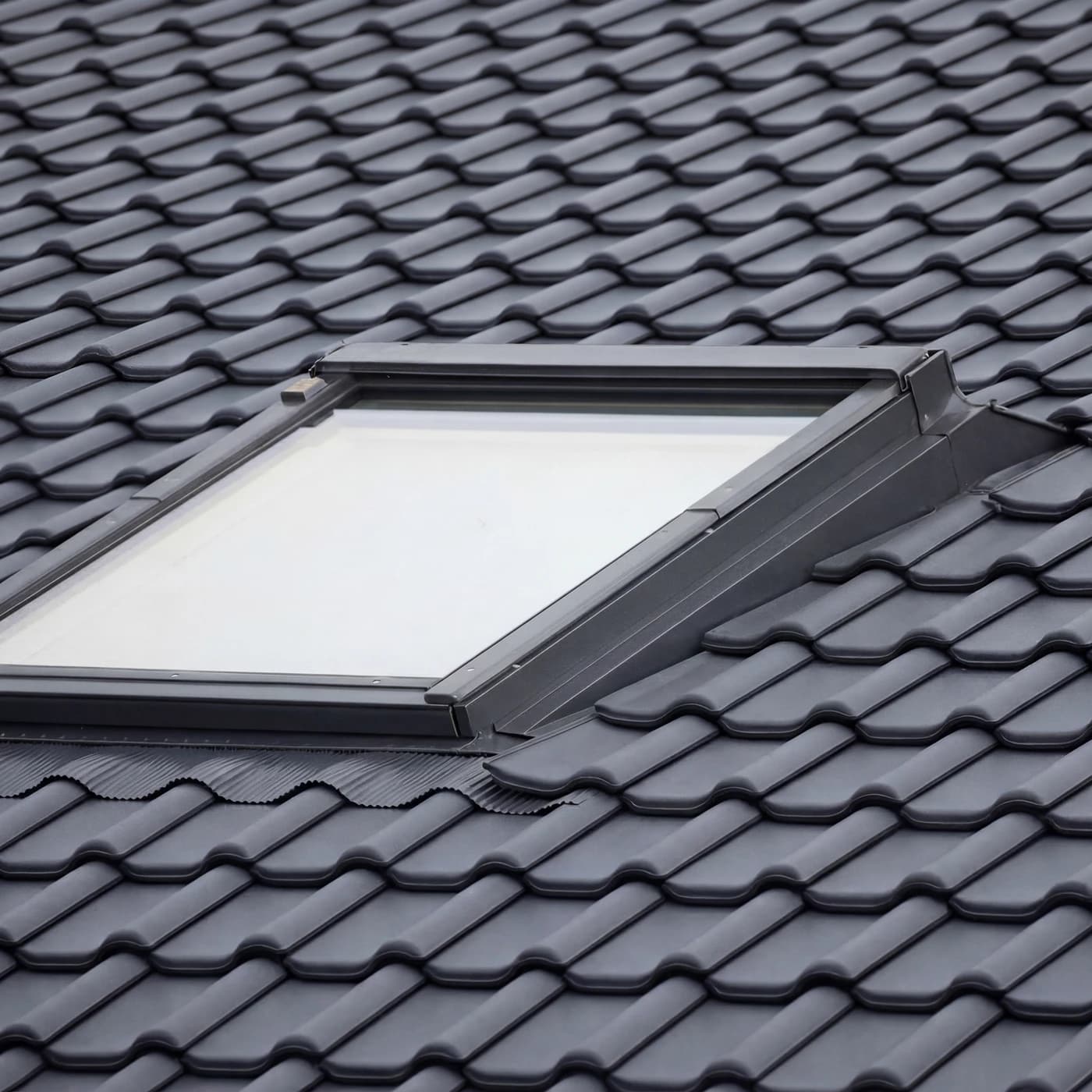

Flashing EHA-P for high-profile roofing
The EHA-P flashing is designed for roof windows installed on low-pitch roofs, starting from 10°. The EHA-P flashing allows for a tight connection between the window and high-profile roofing materials, such as tiles (e.g. monk and nun tiles) or high-profile sheet metal. It can be used for roofing materials with a profile height of up to 90 mm. The flashing increases the installation angle by 10°, allowing roof windows to be installed on roofs with a pitch lower than the minimum required for a roof window. Equipped with a lead apron, it guarantees a durable and aesthetic connection with the roof slope. The flashing is available in three colours – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – which makes it easy to match to the roof and FAKRO windows.
Assistance with installation
The installation of the EHA-P flashing is quick and easy – the system components fit perfectly to the window and high-profile roofing. Special brackets allow the installation angle to be increased by 10°, facilitating interior lighting and improving roof functionality. The flashing is designed for a single window, but modular versions for combinations are also available if required. The installation range covers roofs with pitches from 10° to 75°, so it is not only suitable for low-pitched roofs.
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.
High-profile roofing
The flashing designed for high-profile roofing guarantees a tight and secure connection between the roof window and the roof surface made of tiles or sheet metal with a deep profile of up to 90 mm. This system solution effectively drains rainwater and protects against snow and wind. Its universal design allows it to be used with various types of high-profile roofing, maintaining an aesthetically pleasing and uniform roofline.
A design refined in every detail

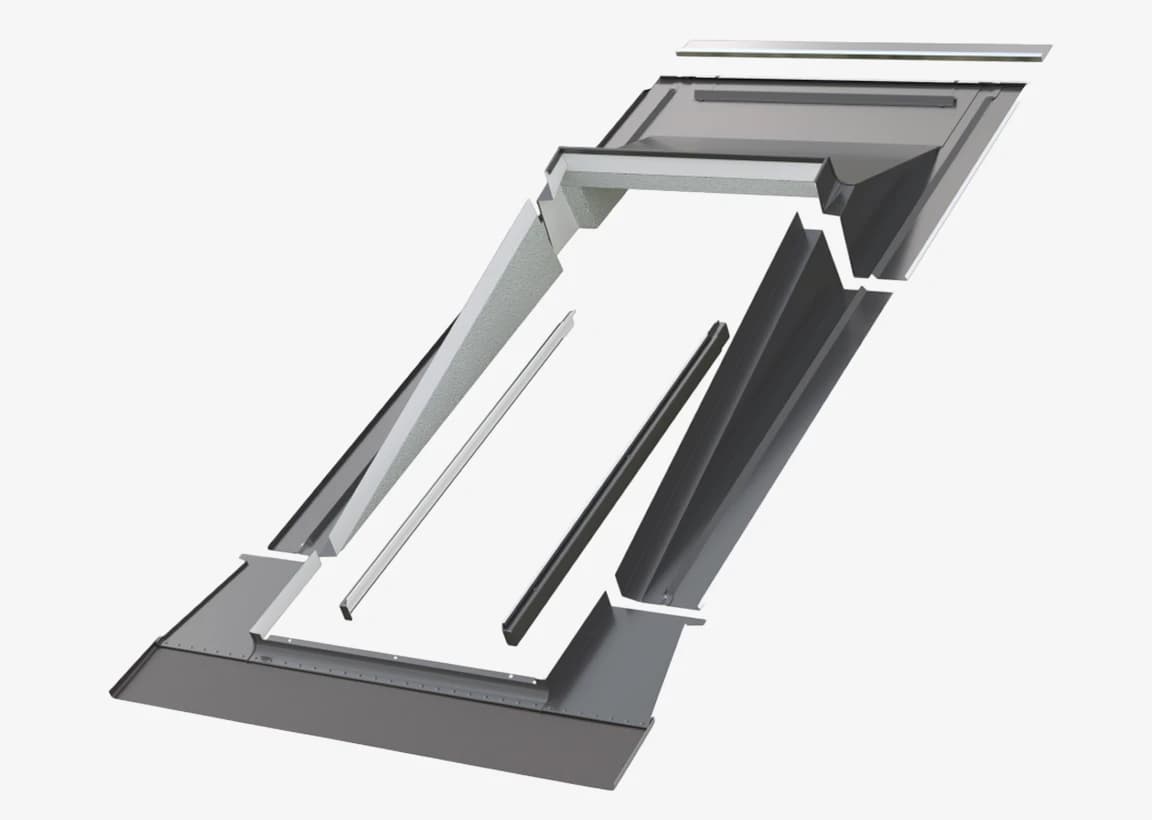

The EHA-P flashing is primarily designed for low-pitch roofs covered with high-profile roofing materials, such as monk and nun tiles, high-profile sheet metal or other roofing materials with a profile height of up to 90 mm. It consists of lower, upper and side elements as well as frame side covering profiles. The lower element, glued with plastic compound, ensures tight adhesion to the roofing, and factory-applied sealing wedges protect against dust, leaves and snow blowing in. The drainage gutter effectively drains condensation from the underlay film outside the window, ensuring a durable and aesthetic connection between the window and the roof.
Characteristic features of flashings
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
