Pivot roof windows

FTP-X P50 APZX

See where to buy this product
Size:

Remote opening via Z-Wave system

Glazing unit P50 (Uw =0.9 W/m²K with dedicated EHV-AT Thermo flashing)

Very good sound insulation Rw=40dB

For rooms with increased humidity

Keep in mind that a flashing is required for window installation.

FTP-X P50 APZX - Descriptions[0]

Pivot window FTP-X P50 APZX

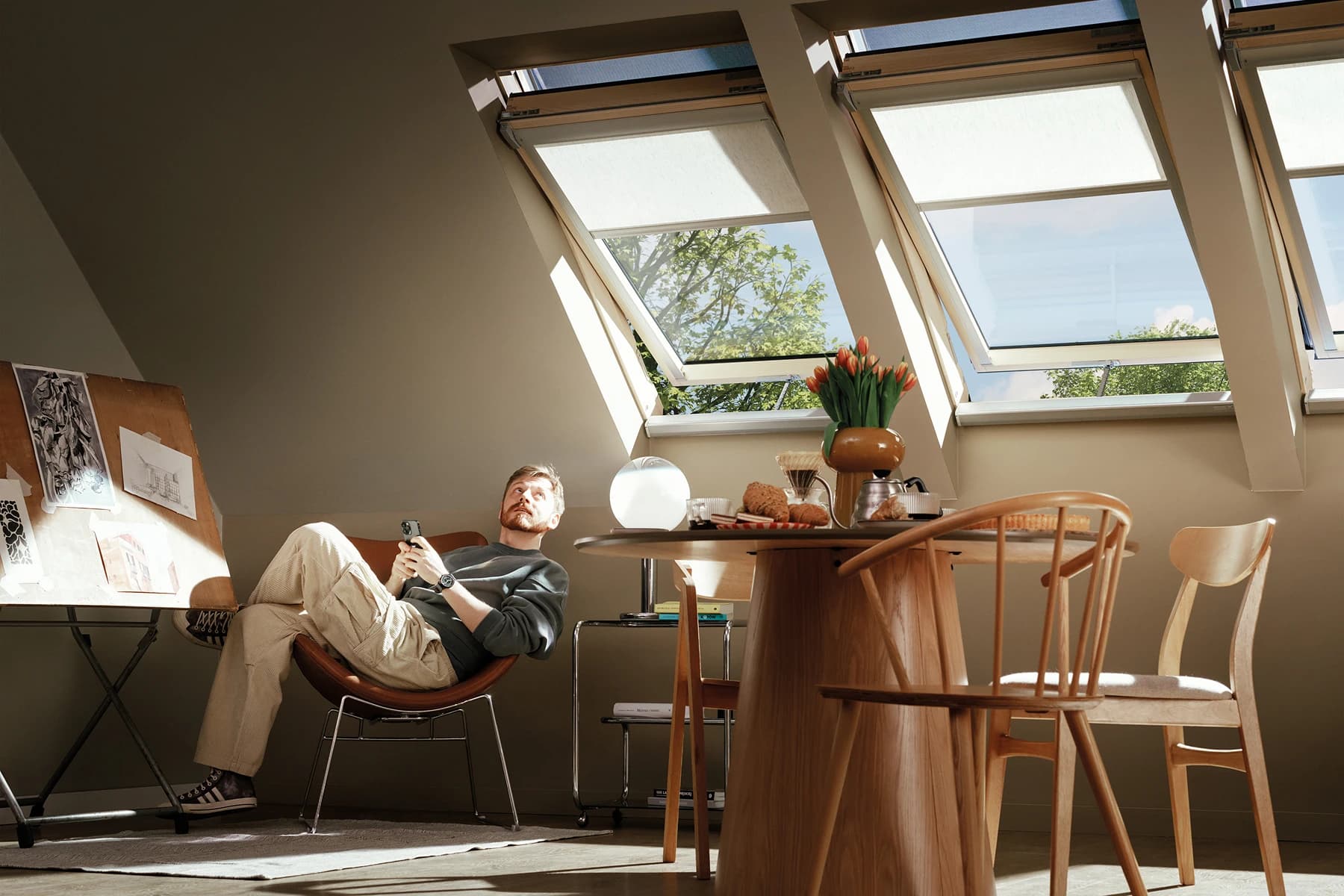

The pivot opening system with a mid-height hinge ensures easy ventilation and safe window cleaning. The sash can be rotated 180° and locked allowing for cleaning of the outer pane. A built-in actuator with a 24 cm reach and rain sensor guarantee comfort and safety in everyday use. Control is wireless thanks to Z-Wave radio technology, allowing for operation via remote control or wall-mounted switch. The window can be integrated into a Smart Home system using a gateway.

FTP-X P50 APZX - Descriptions[1]

Energy and acoustic efficiency

The 44 mm U41 triple-glazed unit, combined with thermoPro technology, supports stable thermal comfort throughout the year when properly installed and appropriately matched to the building conditions. The Uw coefficient is rated at 1.0 W/m²K in a standard installation and 0.9 W/m²K with the EHV-AT Thermo flashing. The window helps reduce heat loss in winter and limit attic overheating in summer, which may support more efficient building performance when installed correctly and matched to the appropriate application. In addition, flexible seals support system airtightness and help minimise the risk of thermal bridging when properly installed and combined with compatible accessories. Sound insulation of Rw = 40 dB ensures quiet even in noisy environments, supporting everyday comfort.

FTP-X P50 APZX - Descriptions[2]

Aesthetics and durability

Vacuum impregnated pinewood coated with clear acrylic varnish highlights the natural grain and creates an elegant setting for residential interiors. The external anthracite (RAL 7016) cladding emphasises the modern character of the window and matches contemporary architectural trends. It is a universal choice for users who value functionality, aesthetics and durability in a modern version.

See the details of this product

Actuator with extension arm

The actuator with a 24 cm reach, located at the bottom section of the window, enables smooth and automatic opening and closing. The arm, in the form of an extendable chain, moves the sash in a stable and even manner, ensuring safe operation throughout the entire range of motion.The chain extends quietly and precisely, eliminating jerks when starting and stopping. This mechanism allows for convenient window control both locally and remotely.

Glazing unit P50

The 44 mm thick triple-glazed unit has been designed for high thermal and acoustic insulation. Toughened outer pane, laminated inner pane, argon and soundproofing film effectively increase user comfort. In combination with the Thermo flashing, the entire window achieves a heat transfer coefficient of Uw = 0.9 W/m²K. The design reduces noise to 40 dB.

Glass

The P50 glazing unit combines features that support durability, security, and user comfort. The toughened outer pane helps increase resistance to damage, while protection against hail damage is covered by a lifetime warranty in accordance with its terms and conditions. The internal P2A class laminated glass increases safety by reducing the risk of injury in the event of breakage and makes it more difficult to force the window open during a break-in attempt. An additional acoustic film improves sound insulation, and the easy-to-clean coating makes cleaning the outer glass easier.

External cladding

The external cladding was designed in cooperation with the Institute of Industrial Design. Its modern, minimalist form emphasises the aesthetics of the window and harmonises with the roof line. The anthracite colour (RAL 7016) fits perfectly with current architectural trends. The colour consistency of the cladding, accessories and flashings creates a harmonious, elegant set that is resistant to weather conditions.

Internal finish

Carefully selected pinewood, vacuum impregnated and coated with a clear acrylic varnish, emphasises the natural character of the wood. This makes your interior cosy, warm and elegant. The finish is durable and resistant to everyday use, maintaining its aesthetic appearance for many years.

Locking bolt

A special locking bolt allows the sash to be locked in place when rotated 180 degrees. This allows you to safely and comfortably clean the outer pane yourself, without having to climb onto the roof or hire professionals. This simple solution makes it much easier to maintain and keep your roof windows clean.

Get inspired by FAKRO

Looking for ideas? Explore our gallery to see how our products work in real spaces.

Key features

Our products stand out where it really counts. Discover the features that make them reliable and built to last.

thermoPro technology

The thermoPro technology supports the window's thermal insulation performance, helping to reduce heat loss in winter and limit indoor heat build-up during summer. When installed correctly, it may contribute to improved thermal comfort and more efficient energy use.

topSafe system

The topSafe system enhances security thanks to reinforced window construction and resistance to break-in attempts or accidental opening, helping to enhance your family's sense of safety and comfort at home.

Environmentally conscious solution

PVC windows incorporate recycled materials, and selected product components may be recycled at the end of their service life, subject to the material properties and local recycling regulations. Such an approach increases the material transparency of the product and may support more informed design decisions.

Easy-to-clean coating

The easy-to-clean coating makes it easier to keep the outer pane clean. When exposed to sunlight and rain, it may help reduce the build-up of common contaminants such as dust and pollen.

Soundproofing

The triple-glazed unit featuring an acoustic film and laminated pane helps reduce external noise, potentially enhancing acoustic comfort indoors.

Design

The modern design of the cladding, developed in cooperation with the Institute of Industrial Design, emphasises the minimalist aesthetics of the window. Three colours – anthracite (RAL 7016), black (RAL 9005) and grey-brown (RAL 7022) – allow for a consistent match with the roof and accessories.

FTP-X P50 APZX specification

All parameters apply to the selected size (46x78) when used with original installation accessories.
Dimensions
Commercial size (W × H)
46x78 cm
Window frame clear opening width
368 mm
Window frame clear opening height
686 mm
Window sash clear opening width
279 mm
Window sash clear opening height
591 mm
Window reveal clear opening width
405 mm
Window reveal clear opening height
719 mm
Opening angle for cleaning
180 °
Material and appearance
Construction type
Pivot
Window colour
Natural wood pine
Window cladding colour
Anthracite RAL 7016
Window material
Vacuum impregnated pinewood
Cladding material
Aluminium
Lacquer colour
naturalny
Lacquer type
Acrylic
Number of lacquer coats
2
Opening and control
Opening method
pivot
Control system
Z-Wave control
Solar power supply
No
Thermal insulation
Number of seals
4 szt.
thermoPro
thermoPRO
Thermal transmittance coefficient Uw
1 W/m2K
Airtightness class (air permeability)
Class 4
Safety
Safety level
topSafe
Wind load resistance
Class C4/B4
Impact resistance
Class 3 - 450 mm
Watertightness
9A
Acoustic insulation
Sound reduction index Rw
40 dB
Sound reduction index Ra1
39 dB
Sound reduction index Ra2
35 dB
Equipment and accessories
Handle model
GREENVIEW SILVER handle
Air inlet
Not applicable
Installation
Installation depth
N, V
Installation location
Rafters or battens
Transport information
Product weight
30 kg
Package width
0.48 m
Package length
1.05 m
Package height
0.205 m
Packaging method
Tied with transportation belts

Instructions and files to download

Instructions

  • user_manual_NC_41J_FTP-V_Z-Wave_(GV)_mobileJPG.pdf
    PDF
    Download
  • Instrukcja_programowania_NC_8EA-PL_FT..__PT.._Z-Wave_mobileJPG.pdf
    PDF
    Download
  • Installation instructions
    PDF
    Download

Certificates and declarations

  • 01EWP50_FTP_V_FTP_X_P50_25.11.2024_EN.pdf
    PDF (98 KB) | 25.11.2024
    Download
  • EPD FAKRO okna dachowe drewniane.pdf
    PDF
    Download
  • Swiadectwo EPD - okna drewniane dachowe.pdf
    PDF
    Download

For professionals

Logistics information

Item number
87RG46
Commercial size (W × H)
46x78 cm
Installation size (W × H)
46x78 cm
Number of products per pallet
0 szt.
