ESV DUO

The flashing designed for flat roofing ensures a tight and aesthetic connection between the roof window and the roof surface made of roofing felt, bitumen shingles, flat sheet metal or slate up to 10 mm thick (2 layers of max. 5 mm each). With its precise design, it guarantees reliable protection against water and wind, while maintaining the visual integrity of the roof, emphasising its uniform form.

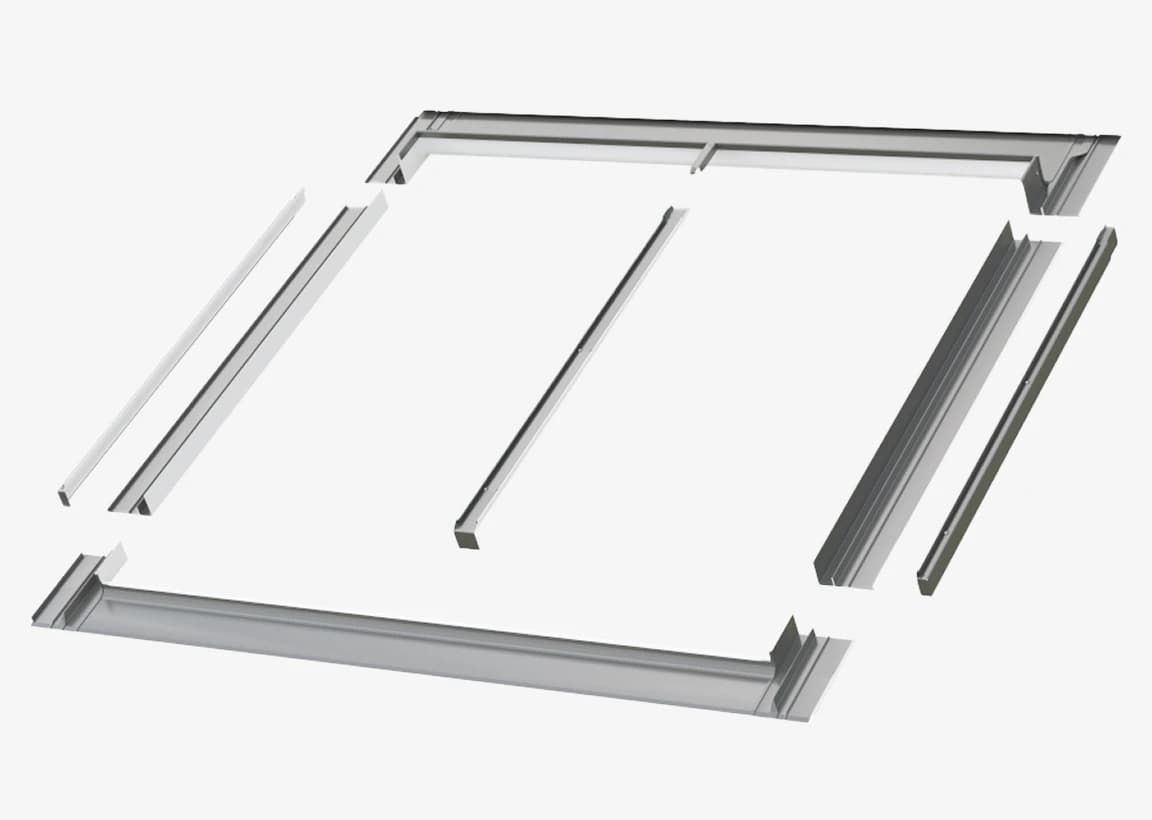

The ESV DUO flashing is designed for horizontal combination of two roof windows in flat roofing, such as roofing felt, bitumen shingles or waterproof membranes (EPDM, etc.). The common set for both windows consists of lower, upper and side elements as well as frame side covering profiles, allowing windows to be installed with a spacing of 18 mm or 40 mm using the appropriate XR_ vertical strip. The lower element with glued plastic mass adheres tightly to the roofing, which facilitates installation and ensures high tightness of the connection.

The ESV DUO flashing is available in two widths, allowing for flexible adjustment of window spacing to suit design requirements. The DUO 18 version allows two windows to be installed at a short distance using the XR_18 vertical strip, creating a narrow and aesthetic horizontal combination. The DUO 40 option provides a larger, 40 mm gap between windows and is compatible with the XR_40 strip. If KOMFORT external roller shutters are planned for GREENVIEW windows, a wider horizontal spacing of 100 mm is required, which should be taken into account when selecting the system.
