For flat roofing: roofing felt, bitumen shingles, flat sheet metal, slate up to 10 mm (2 layers of 5 mm each)
Suitable for pitches from 20° to 60°
For smoke ventilation windows
![ESS - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Ko%2525C5%252582nierze%252520specjalne%252520do%252520klap%252520oddymiaj%2525C4%252585cych%2FESS_E2E%2Fess-02.webp&w=1920&q=75)
Flashing ESS for smoke ventilation windows
The ESS flashing is a dedicated solution for installing the FSP P2 smoke ventilation windows, enabling their tight and secure connection to flat roof coverings. It works well with materials such as roofing felt, bitumen shingles, flat sheet metal or slates up to 10 mm thick (2x5 mm). Its precisely tailored design ensures effective water drainage and protection against wind.
![ESS - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Opisy%2F03.webp&w=1920&q=75)
Assistance with installation
The ESS flashing enables quick and precise installation of the FSP P2 smoke ventilation window in the roof surface. Its system components have been designed to fit perfectly with the window structure, guiding the installer step by step to achieve a tight and stable connection. The flashing allows for trouble-free installation in flat roofing materials – roofing felt, bitumen shingles, flat sheet metal and slate with a total thickness of up to 10 mm (2x5 mm for overlapping layers of roofing). The rigid construction adheres to the roof slope, eliminating the risk of leaks and simplifying the installation process. The ESS ensures proper integration of the window with the roof, guaranteeing a tight and aesthetic integration with the roof.
See the details of this product
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.
Flat roofing
The flashing designed for flat roofing ensures a tight and aesthetic connection between the roof window and the roof surface made of roofing felt, bitumen shingles, flat sheet metal or slate up to 10 mm thick (2 layers of max. 5 mm each). With its precise design, it guarantees reliable protection against water and wind, while maintaining the visual integrity of the roof, emphasising its uniform form.
A design refined in every detail

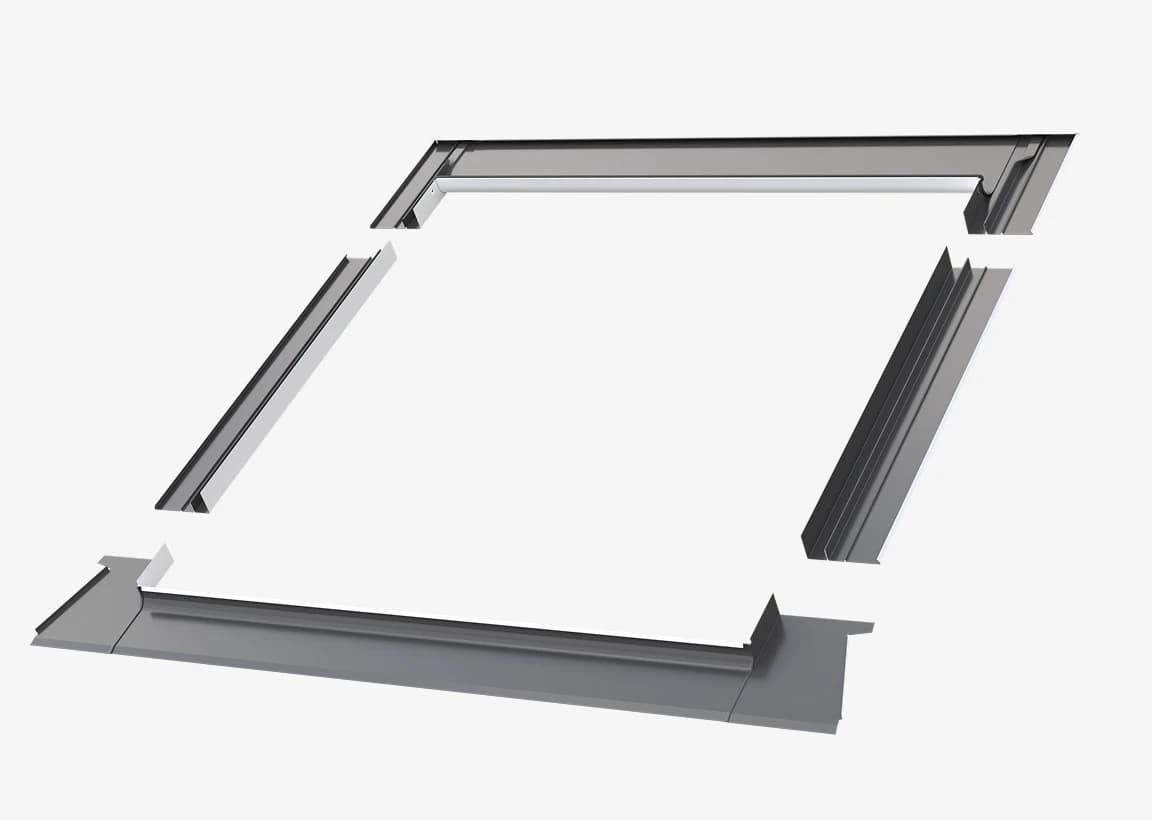

The ESS flashing enables the installation of the FSP P2 smoke ventilation windows in flat roofs covered with roofing felt, bitumen shingles, flat sheet metal or slate, with a total thickness of all covering layers in the flashing area of up to 10 mm. The set consists of upper, lower and side elements. The lower element with plastic mass ensures a tight fit to the roofing. The included hooks and mounting kit facilitate installation.
Characteristic features of flashings
Our products stand out where it really counts. Discover the features that make them reliable and built to last.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
