For high-profile roofing: roof tiles, profiled sheet metal and other roofing materials with a profile height of up to 90 mm.
Suitable for pitches from 20° to 60°
Version with lead apron
For smoke ventilation windows
![EHS-P - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Ko%2525C5%252582nierze%252520specjalne%252520do%252520klap%252520oddymiaj%2525C4%252585cych%2FEHS-P_E2C%2Fehs-p-02.webp&w=1920&q=75)
Flashing EHS-P for smoke ventilation windows
The EHS-P flashing is a universal solution designed for the installation of smoke ventilation windows, ensuring a tight and stable connection with high-profile roofing. It is ideal for tiles and profiled sheet metal, as well as all roofing with a profile height of up to 90 mm. The lower element with a flexible lead apron adapts precisely to the shape of the roofing, enabling effective water drainage and wind protection. The EHS-P guarantees a durable, secure and aesthetic installation of the smoke ventilation window in the roof slope.
![EHS-P - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FKo%2525C5%252582nierze%2F%252521%252520Opisy%2F03.webp&w=1920&q=75)
Assistance with installation
The EHS-P flashing enables quick and precise installation of a smoke ventilation window in the roof slope, ensuring stable and tight fitting. The system components adapt to the window structure and high-profile roofing materials, such as tiles or profiled sheet metal. The lead apron fits precisely to the surface of the roofing, reducing the risk of leaks. The flashing is universal – it works not only on corrugated roofing with a profile of up to 45 mm, but also on flat or scale roofing, ensuring a durable and secure connection between the window and the roof.
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.
High-profile roofing
The flashing designed for high-profile roofing guarantees a tight and secure connection between the roof window and the roof surface made of tiles or sheet metal with a deep profile of up to 90 mm. This system solution effectively drains rainwater and protects against snow and wind. Its universal design allows it to be used with various types of high-profile roofing, maintaining an aesthetically pleasing and uniform roofline.
A design refined in every detail

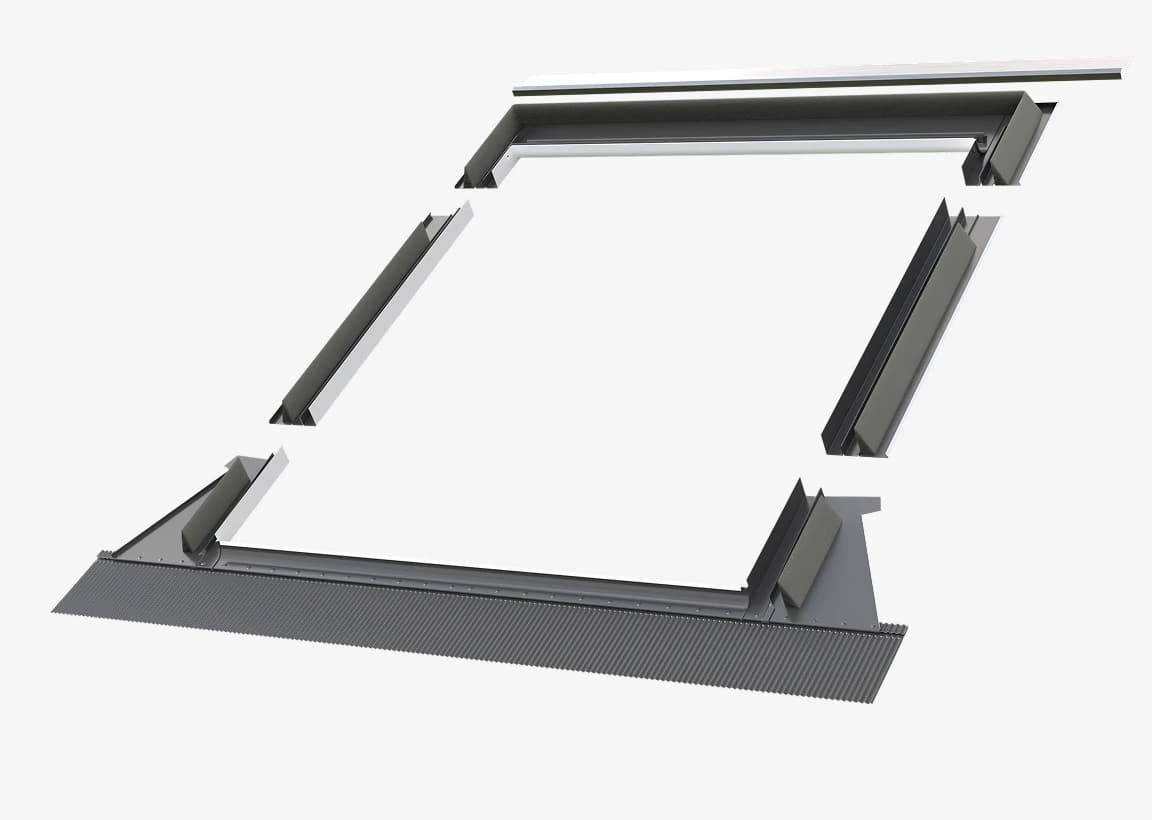

The EHS-P flashing is designed for installing smoke ventilation windows in high-profile roofing. It allows for a tight connection between the window and roof tiles, profiled sheet metal, and other roofing materials with a profile height of up to 90 mm. The set consists of upper, lower and side elements, a drainage gutter, sealing wedges, a tile support strip, hooks and fitting instructions. The lower element with an aluminium apron adapts to the shape of the roofing, ensuring a tight seal. The flashing design facilitates quick, safe and aesthetic installation of the smoke ventilation window.
Characteristic features of flashings
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
