EBV-T Thermo _X01
For panel roofing: panel sheet with prefabricated interlocking joint system
Suitable for roofs with pitches from 15° to 90°
Thermo version with additional insulation
Right module
Modular flashing EBV - T Thermo _X01 for panel roofing
The EBV‑T _X01 flashing is the left end module that opens a horizontal combination of windows installed in “click” metal panel roofing. Thanks to its precisely designed and manufactured components, it enables the creation of window combinations that ensure an aesthetic integration with the roofing and effective drainage of water away from the window area. The factory‑applied insulation improves the window’s thermal transmittance by up to 15% and reduces the risk of thermal bridges. The EBV‑T _X01 module forms the starting point for larger combinations, allowing the design of wide window layouts tailored to modern panel roofs and enhancing the functionality of the loft space. The flashing is available in three colours — anthracite (RAL 7016), grey‑brown (RAL 7022) and black (RAL 9005) — making it easy to match with the roof and FAKRO windows.
Assistance with installation
The EBV‑T Thermo _X01 flashing streamlines the installation of a roof window in combinations, making it easier to position the first module. Its precise fit to the window and metal roof panels speeds up the installation process, while the added thermal insulation improves the tightness of the connection without increasing installation complexity. This module opens the combination and guides the installer from the very first step. It is designed for roof pitches between 15° and 90°.
Uniform roof aesthetics
FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.

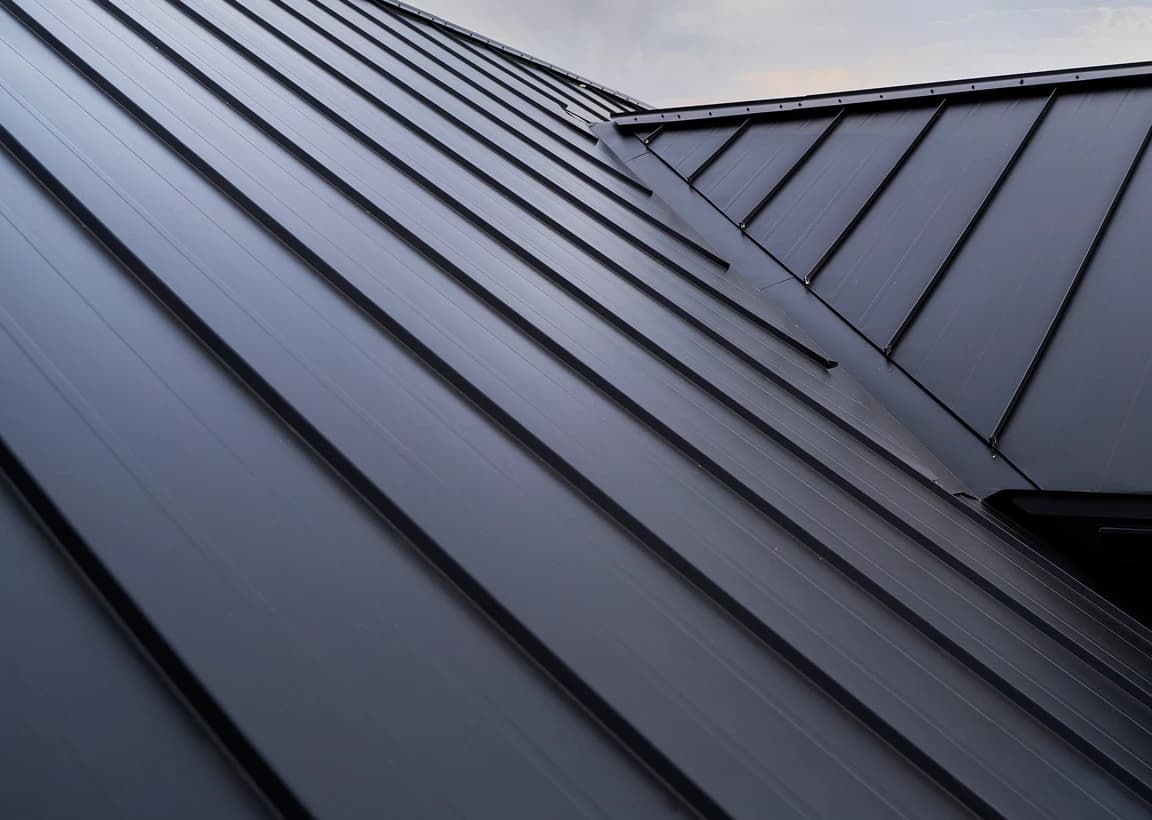

Panel sheet
The flashing designed for panel sheets ensures a tight connection between the roof window and the roof surface made of prefabricated click-type panels or an interlocking joint system. The specially designed construction allows for quick and aesthetic installation without the need for complicated flashings. The system solution guarantees effective protection against water and wind and a consistent appearance with modern roof architecture.
A design refined in every detail
The EBV‑T _X01 flashing is designed for roof‑window combinations installed in standing‑seam metal panel roofing. It consists of the upper element, lower element, central gutter and frame side covering profiles. Additionally, it is equipped with thermal‑insulation material that allows the window frame to be insulated above batten level, as well as a drainage gutter that directs moisture from the vapour permeable membrane away from the window area.
Thermo flashing
The Thermo version of the flashing features an additional layer of thermal insulation made of flexible insulating material, which tightly adheres to the frame and creates a closed thermal insulation frame. This solution improves the heat transfer coefficient by up to 15%, depending on the window type, and reduces the formation of thermal bridges and heat loss.
Nasze produkty wyróżniają się tym, co naprawdę ma znaczenie. Poznaj cechy, które czynią je niezawodnymi i wyjątkowymi w codziennym użytkowaniu.
Three installation depths
FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.
High-quality materials
FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.
