Basic flashings

EZV-F _X00

See where to buy this product
Size:

For flat tiles: designed for roofing with a height of up to 50 mm

Suitable for roofs with pitches from 15° to 90°

EZV-F _X00
EZV-F _X00 - Descriptions[0]

Flashing EZV - F _X00 for flat tiles

The EZV-F _X00 flashing is a modern solution for roof windows installed in flat tiles. Thanks to its specially designed construction, it guarantees a perfect fit to the roof surface, effectively protecting the interior from rain, snow and wind. The extended lower element without a lead apron ensures an aesthetic appearance and a durable seal. The reinforced structure increases resistance to deformation, e.g. under the weight of snow. The flashing is available in three colours – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – making it easy to match roofs and FAKRO windows.

EZV-F _X00 - Descriptions[1]

Assistance with installation

The installation process of the EZV-F _X00 flashing is quick and easy – specially designed components fit precisely to the window and flat roof tiles, facilitating the roofer's work and ensuring a tight seal. Designed as standard for single window installation, it is also available in modular versions that can be fitted in combinations. The installation range covers roofs with pitches from 15° to 90° (N, V) and 20° to 90° (J), making it suitable for most roof structures.

See the details of this product

Uniform roof aesthetics

FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.

Flat tile

The flashing designed for flat tiles enables a tight connection between the roof window and the roof surface made of this type of covering. The specially designed construction facilitates installation, improves aesthetics and effectively protects against water and snow. This system solution ensures durability, reliability and a consistent roof line, blending in perfectly with modern architecture.

A design refined in every detail

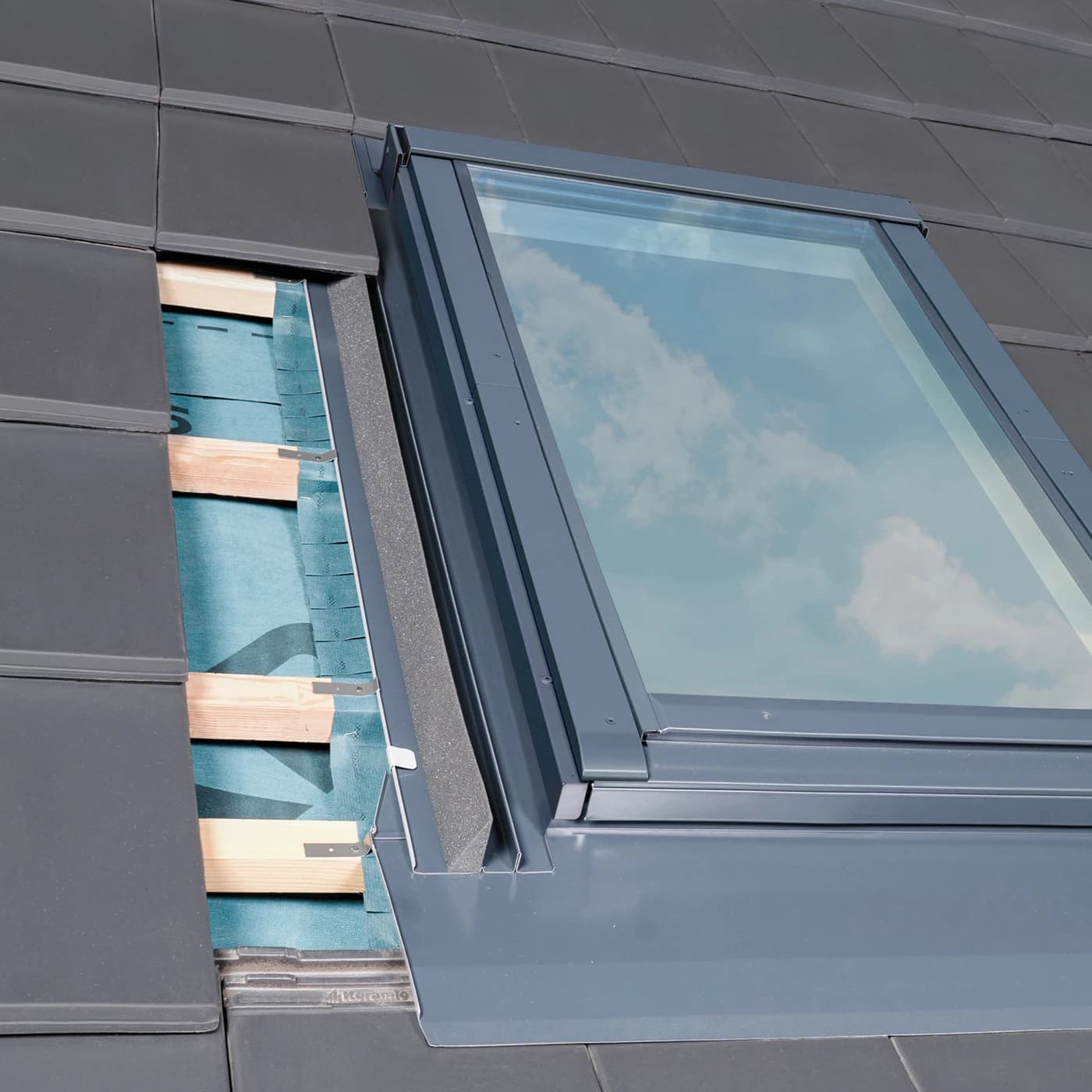

The EZV-F _X00 flashing for flat roof tiles consists of a bottom, top and side elements, as well as the frame side covering profiles. The factory connection of the bottom element with the frame bottom covering profile and the elimination of screws in the upper part of the flashing speed up installation and improve the aesthetics of the finish. The flashing is equipped with sealing wedges that protect against dust, leaves and snow, as well as a drainage gutter that effectively drains condensation from the underlay film outside the window.

Characteristic features of flashings

Our products stand out where it really counts. Discover the features that make them reliable and built to last.

Three installation depths

FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.

High-quality materials

FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.



EZV-F _X00 specification

All parameters apply to the selected size (46x78) when used with original installation accessories.
Type
Flashing type
Standard
Flashing application
For roof window, For escape window, For balcony window
Roof covering type
Plain tile (ZF)
Dimensions
Flashing size W x H
46x78 cm
Material and appearance
Apron material
No apron
Equipment and accessories
Main components
Standard upper element, Standard lead apron, Standard right side, Standard left side, Frame side covering profiles_standard
Additional components
Water drainage gutter, Roof rails, Insulation wedges, Installation set, Hooks
Installation
Window installation depth
V
Maximum roof covering profile height
45
Min. roof pitch
15 °
Max. roof pitch
90 °
Transport information
Product weight
2.62 kg
Packaging width
0.36 m
Packaging length
1.265 m
Packaging height
0.111 m
Packaging method
they are packed on euro pallets

Instructions and files to download

Certificates and declarations

For professionals

Logistics information

Product code
886D46
Commercial size (W x H)
46x78 cm
Installation size (W x H)
46x78 cm
Number of products per pallet
21 szt.
