Basic flashings

EBV-T Thermo _X00

See where to buy this product
Size:

For panel roofing: panel sheet with prefabricated interlocking joint system

Suitable for roofs with pitches from 15° to 90°

Thermo version with additional insulation

EBV-T Thermo _X00
EBV-T Thermo _X00 - Descriptions[0]

Flashing EBV-T Thermo _X00 for panel sheet (so-called click locking)

The EB_-T Thermo _X00 flashing is a solution dedicated to roofs covered with panel sheet metal with interlocking joint system, which combines tightness with additional thermal insulation. Additional insulation improves the heat transfer coefficient by up to 15%, depending on the type of window, and reduces the formation of thermal bridges and heat loss. Installation is quick and easy, without the need for complicated flashings. The flashing is available in three colours – anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005) – making it easy to match roofs and FAKRO windows.

EBV-T Thermo _X00 - Descriptions[1]

Assistance with installation

The installation of the EBV-T Thermo _X00 flashing is simple and quick – the system components fit precisely to the window and the panel roof sheet with interlocking joint system, which facilitates the work of the roofer, and the side flashings made of the same material as the roofing ensure a highly aesthetic finish. This solution minimises the risk of leaks. The flashing is designed for the installation of a single window as standard, but is also available in modular versions for combinations. The installation range covers roofs with pitches from 15° to 90°, making it suitable for many roof structures.

See the details of this product

Uniform roof aesthetics

FAKRO flashings in standard anthracite (RAL 7016) perfectly match the current colour trends in roofing. Black (RAL 9005) and grey-brown (RAL 7022) variants are also available upon request. The availability of three colour options allows the flashing to be matched to the window and roofing, creating a coherent and aesthetically pleasing look.

Panel sheet

The flashing designed for panel sheets ensures a tight connection between the roof window and the roof surface made of prefabricated click-type panels or an interlocking joint system. The specially designed construction allows for quick and aesthetic installation without the need for complicated flashings. The system solution guarantees effective protection against water and wind and a consistent appearance with modern roof architecture.

A design refined in every detail

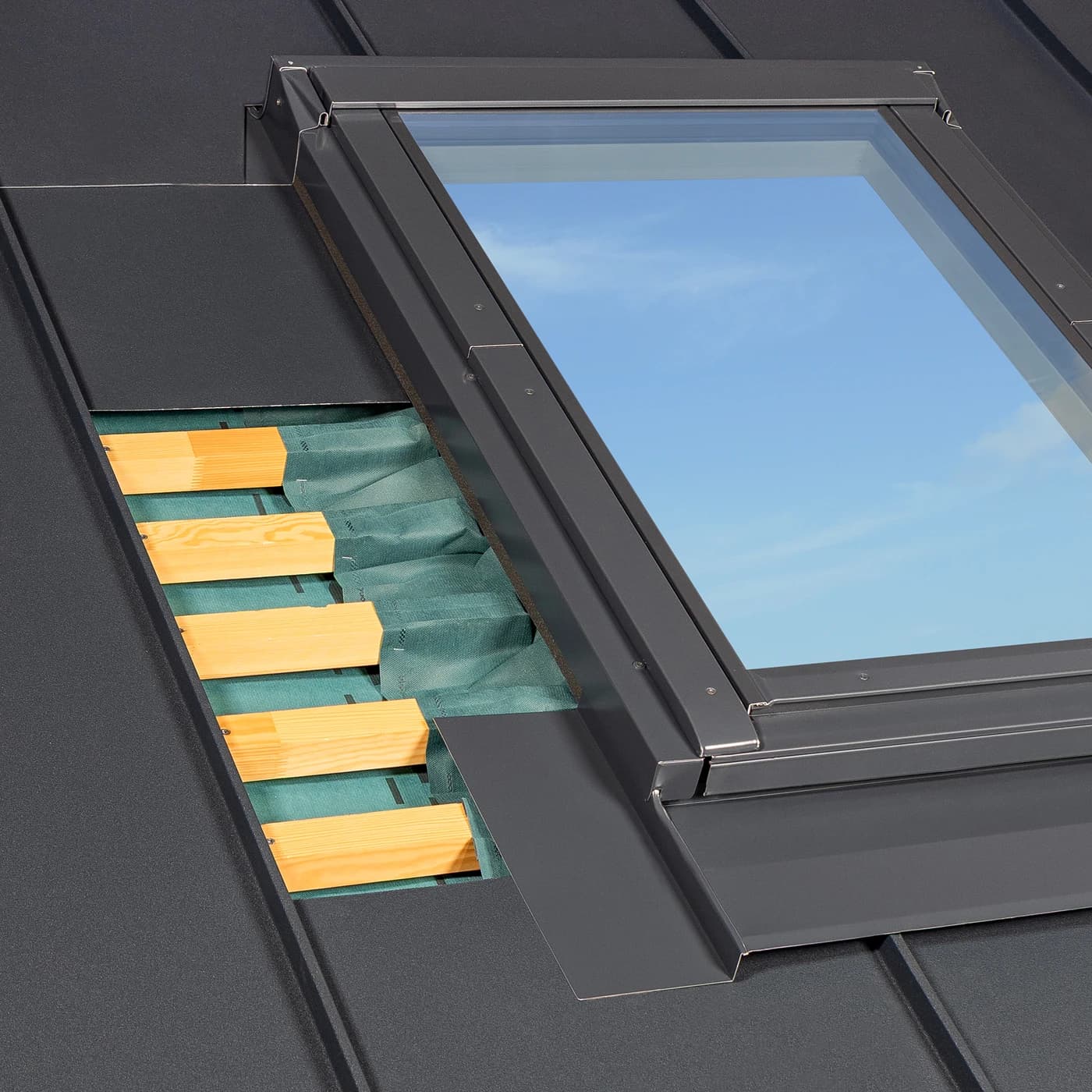

The EBV-T Thermo _X00 flashing designed for roofs covered panel sheet with interlocking joint consists of lower and upper element and frame side covering profiles. The Thermo version is equipped with additional insulation material that wraps around the frame and creates a thermal insulation frame, improving the heat transfer coefficient and reducing the risk of thermal bridges. The flashing is equipped with a drainage gutter that effectively drains condensation from the underlay film outside the window.

Thermo flashing

The Thermo version of the flashing features an additional layer of thermal insulation made of flexible insulating material, which tightly adheres to the frame and creates a closed thermal insulation frame. This solution improves the heat transfer coefficient by up to 15%, depending on the window type, and reduces the formation of thermal bridges and heat loss.

Characteristic features of flashings

Our products stand out where it really counts. Discover the features that make them reliable and built to last.

Three installation depths

FAKRO flashings allow for window installation at depths N, V and J. They are designed for installation at height V (0) as standard. On special request, we can manufacture flashings adapted for installation at height N (+3 cm) or J (–3 cm), ensuring a perfect fit to the roof surface.

High-quality materials

FAKRO flashings are manufactured from coated aluminium sheet with high resistance to weather conditions. This ensures long-term durability, effective protection against rain, snow and wind, and a perfect fit for roof windows.



EBV-T Thermo _X00 specification

All parameters apply to the selected size (46x78) when used with original installation accessories.
Type
Thermo
For roof window, For escape window, For balcony window
B (B)
Dimensions
46x78 cm
Material and appearance
No apron
Equipment and accessories
Standard upper element, Standard lead apron, Frame side covering profiles_standard
Water drainage gutter, Fitting instructions, Insulation foam, Installation set
Installation
V
15 °
90 °
Transport information
3.07 kg
0.39 m
1.265 m
0.155 m
