Room illumination with natural daylight
Suitable for pitched roofs from 15-60° with plain tile roofing
Rigid light transmitting tube with three diameters: 250, 350 and 550 mm
Option to extend tube with SRM modules
![SRL - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2FSRL%252520AN_H2Q%2Fsrl-02.webp&w=1920&q=75)

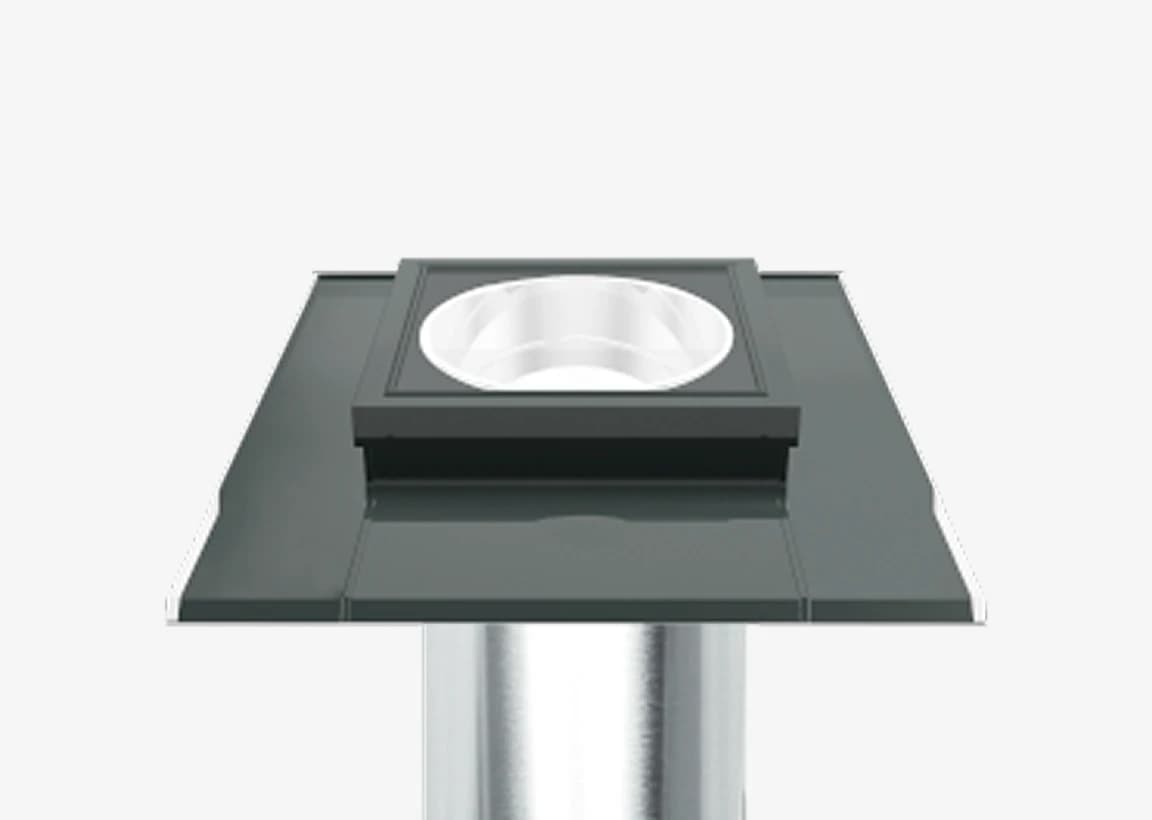

Light tunnel for pitched roofs SRL
Sunlight brightens the interior in a subtle, natural way, improving comfort when moving around and performing everyday activities – without the need for a light switch. Rooms such as bathrooms, changing rooms and narrow corridors often lack access to daylight. In such places, the SRL light tunnel is the ideal solution. Instead of installing artificial lighting, you can bring in daylight in a simple and maintenance-free way.
![SRL - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2F%252521%252520Opisy%2F08.webp&w=1920&q=75)
Tailored to fit plain tile roof covering
The SRL light tunnel has been designed for flat plain tile roof covering. The integrated flashing fits perfectly to the roof structure, ensuring a durable and aesthetically pleasing connection. Installation is possible on roofs with pitches from 15° to 60°. It is a reliable solution in situations where the installation of a standard roof or vertical window is not possible, and more light is needed. The light tunnel works well in both residential and commercial buildings, regardless of their architectural style.
![SRL - Descriptions[2]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2FSRL%252520AN_H2Q%2Fsrl-04.webp&w=1920&q=75)
Maximum performance and protection
Once installed, the SRL light tunnel operates automatically – it does not require a power supply, switch or maintenance. The tube is equipped with sealing tapes that effectively eliminate light leaks, increasing light efficiency and protecting the interior from dirt. The design is highly airtight, durable and does not require regular maintenance. Natural light enters through the glass, reaches the light transmitting tube and is then evenly distributed throughout the room. Additionally, it is possible to install the SLO light kit, allowing the light tunnel to function as artificial lighting after dark.
See details of this product
Glass
The upper section of the SRL light tunnel features 4 mm thick toughened glass mounted in an aluminium frame. Its purpose is to protect against wind, precipitation and dirt, as well as to effectively transmit light into the interior. Resistant to mechanical damage, it works well all year round, regardless of the weather. Even in strong sunlight, it does not cause glare, but provides soft, pleasant lighting.
External cladding
The external cladding of the light tunnel provides durable protection of the structure against water, wind and changing weather conditions. Made of corrosion‑resistant sheet metal, it features an integrated flashing that ensures a watertight connection with the roof surface without the need for additional mounting elements. The cladding, available in anthracite RAL 7016, grey‑brown RAL 7022 or black RAL 9005, highlights the modern appearance of the light tunnel, perfectly matching contemporary roofing materials.
Light transmitting tube
The SRL light tunnel comes with a rigid light transmitting made of aluminium segments with a high light reflection coefficient. This design ensures very effective transmission of sunlight from the roof into the building, even over longer distances. The length of the light transmitting tube is 210 cm for sizes 250 and 350, and 180 cm for size 550 due to the lack of SRK elbows in the set. It is possible to extend the light transmitting tube with additional SRM modules - up to 12 metres, allowing the length to be adjusted to a specific project.
Diffuser
The final element of the SRL light tunnel is a ceiling diffuser with a durable ABS plastic cover in a matt white colour. It is responsible for the pleasant lighting effect in the room – without harsh shadows and spot lighting. Installation is simple – it is enough to slide the diffuser into the frame for an aesthetic ceiling finish. In the extended version, it can be combined with an additional SLO light kit, allowing for use the lighting even after dark.
Characteristic features of light tunnels
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Natural light where there are no windows
Light tunnels bring natural daylight into rooms without traditional windows, such as corridors, bathrooms, and dressing rooms. They make interiors brighter and more pleasant for everyday use.
Effective illumination
Applying specially designed light transmitting tubes allowed light tunnels to transmit daylight even several metres into the room. With this solution, high quality lighting can be maintained even in more complex roof structures.
Universal installation
Light tunnels are suitable for installation on various types of roofing, both flat and pitched. Their robust construction and carefully crafted details ensure reliable operation and aesthetic appeal for years to come.
