Room illumination with natural daylight
Flexible light transmitting tube with two diameters: 350 and 550 mm
Suitable for pitched roofs from 15-60° with flat roofing up to 2x5 mm
Option to extend tube with SLM modules
![SFD-S - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2F%252521%252520Opisy%2F03.webp&w=1920&q=75)
Light tunnel for pitched roofs SFD-S

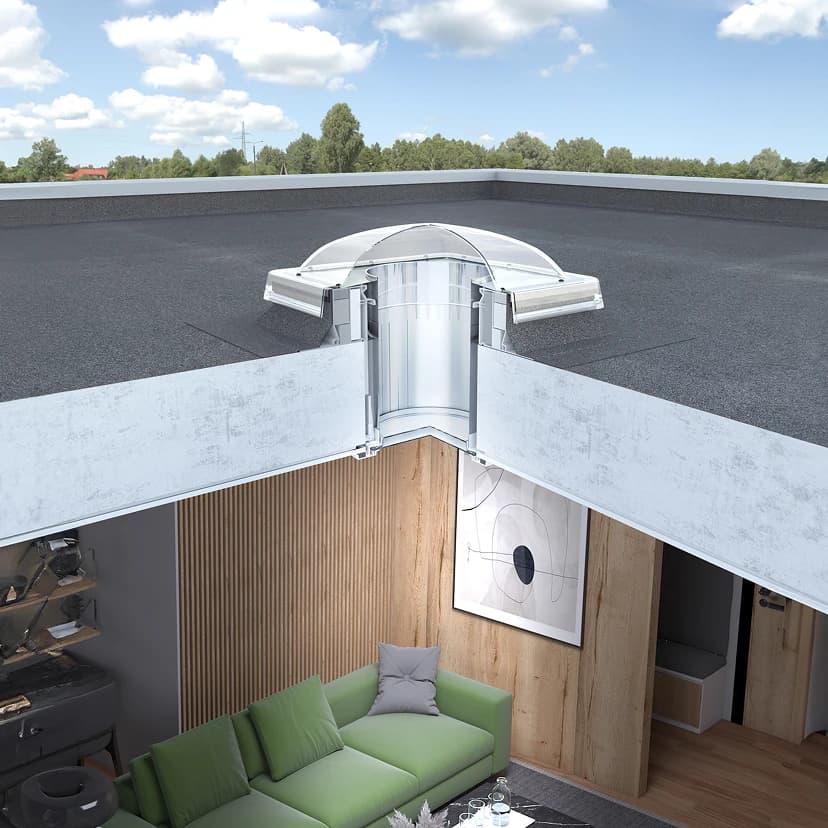

The SFD-S light tunnel is ideal for rooms without windows that still require natural lighting. It effectively brings light into interiors such as attics, corridors and bathrooms. Installed in the roof, it collects sunlight and redirects it into the building, providing comfortable brightness throughout the day. It requires no electrical connection or daily maintenance, making it a convenient solution for years to come.
![SFD-S - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2FSFD-S_H1L%2Fsfd-s-03.webp&w=1920&q=75)
Natural brightness all day long
The SFD-S light tunnel uses daylight to effectively illuminate interiors for many hours – from sunrise to sunset. The light that penetrates is soft and evenly diffused, eliminating sharp contrasts and providing pleasant conditions for everyday life. The tube is equipped with special sealing tapes that prevent light leakage, increasing lighting efficiency and protecting the interior from dirt. The entire structure is highly airtight, robust and does not require frequent maintenance.
![SFD-S - Descriptions[2]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520wy%2525C5%252582azowe%2F%2525C5%25259Awietliki%252520tunelowe%2FLight%252520tunnels%2FSFD-S_H1L%2Fsfd-s-04.webp&w=1920&q=75)
Universal solution for pitched roofs
Equipped with a flexible light transmitting tube and an integrated flashing, the SFD-S model is designed for installation in roofs with pitches from 15° to 60°, with a 2x5 mm thick flat roof covering. It works well in both residential and commercial buildings, regardless of their architectural character. Its aesthetic design blends harmoniously with smooth roof coverings without disrupting their uniform surface. The product combines functionality with visual discretion, providing interior lighting without interfering with the roofline
See details of this product

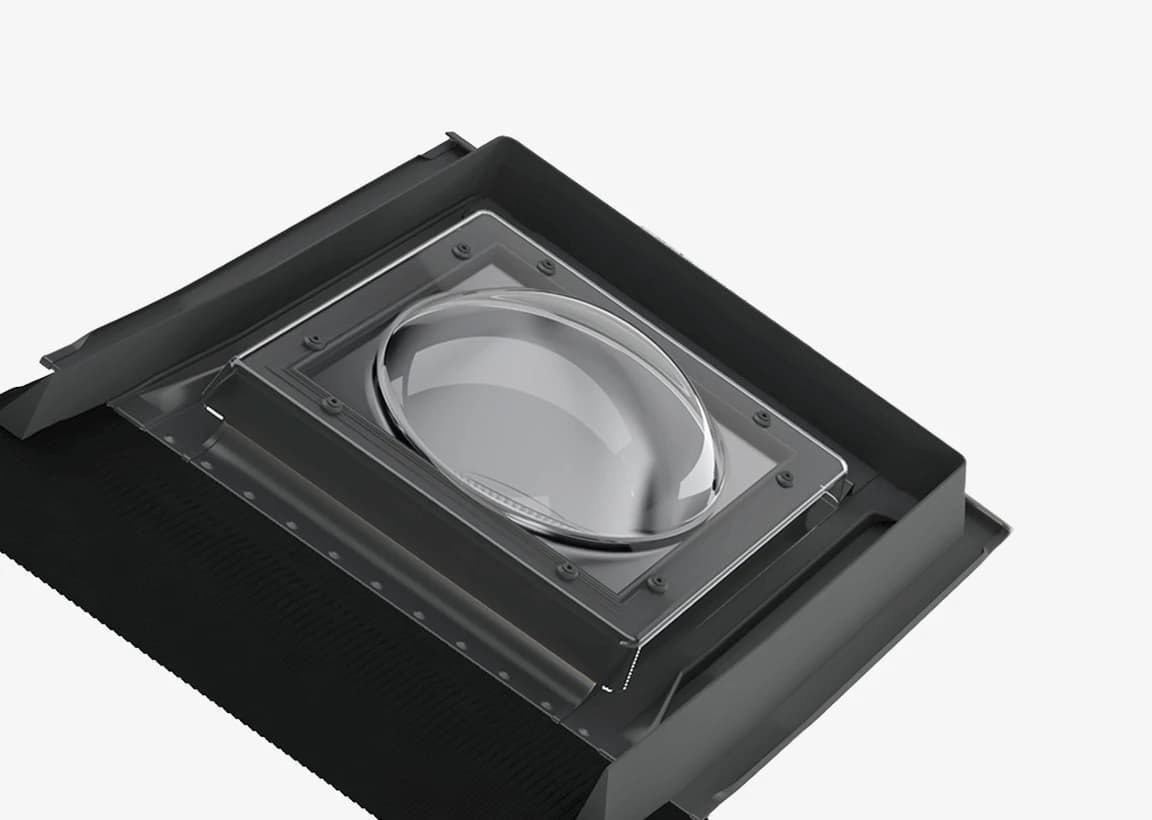

Dome
The upper part of the SFD-S light tunnel is a transparent dome made of durable, weather-resistant plastic. Its contoured shape allows it to effectively capture sunlight regardless of the angle of incidence. The dome is resistant to damage and UV radiation, ensuring long-term reliability. The rounded design facilitates quick water runoff and minimises dirt accumulation. It forms the outer part of the system, discreetly blending in with the roof appearance.

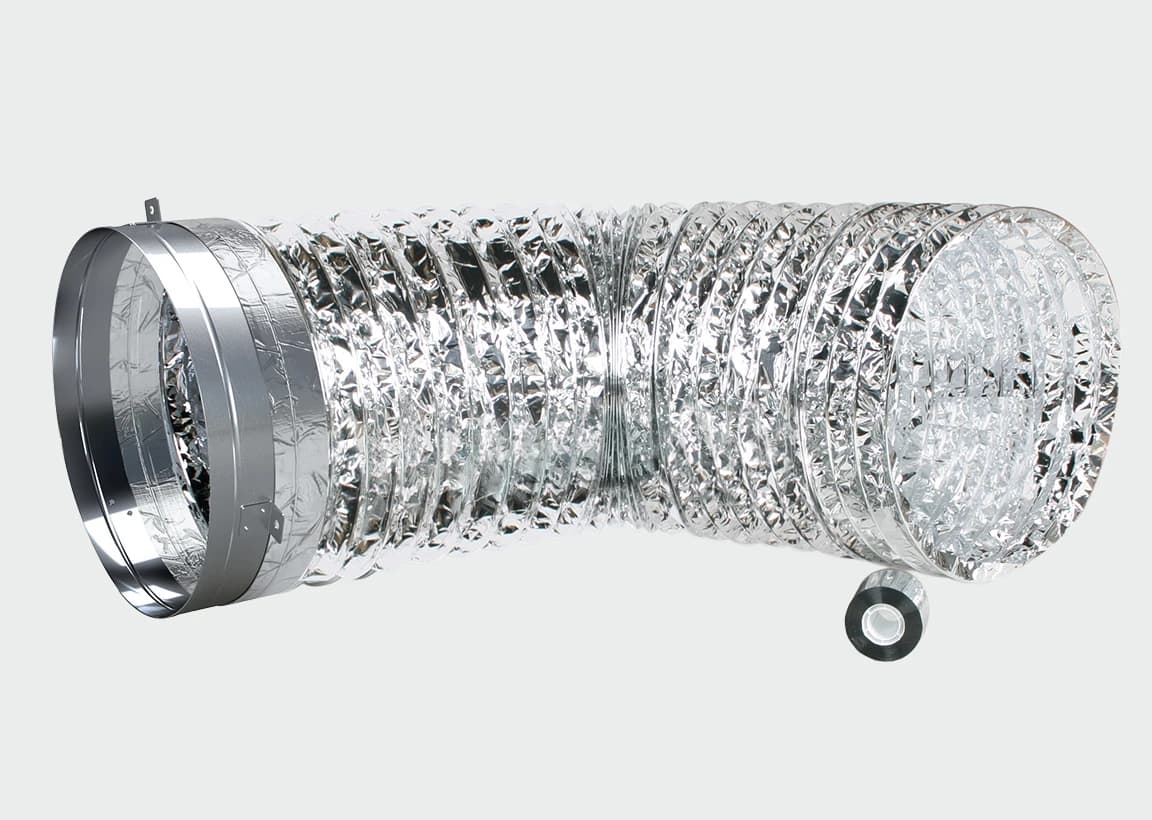

Light transmitting tube

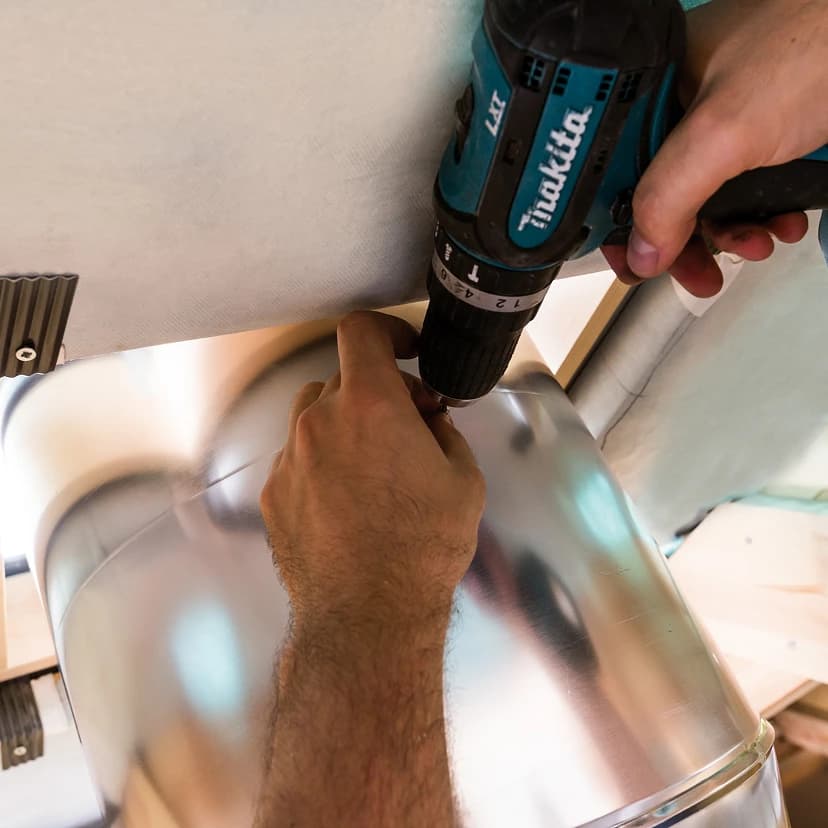

The interior of the SFD-S light tunnel is equipped with a flexible tube with a length of 210 cm. Its design allows for easy installation, easily bypassing structural elements in the attic, significantly simplifying installation and reducing its cost. The tube transmits light from the dome into the building interior, preserving its natural colour and intensity. If necessary, it can be extended using additional SLM modules – up to a maximum recommended length of 400 cm for a tube with a diameter of 350 mm and up to 600 cm for a diameter of 550 mm.
Diffuser

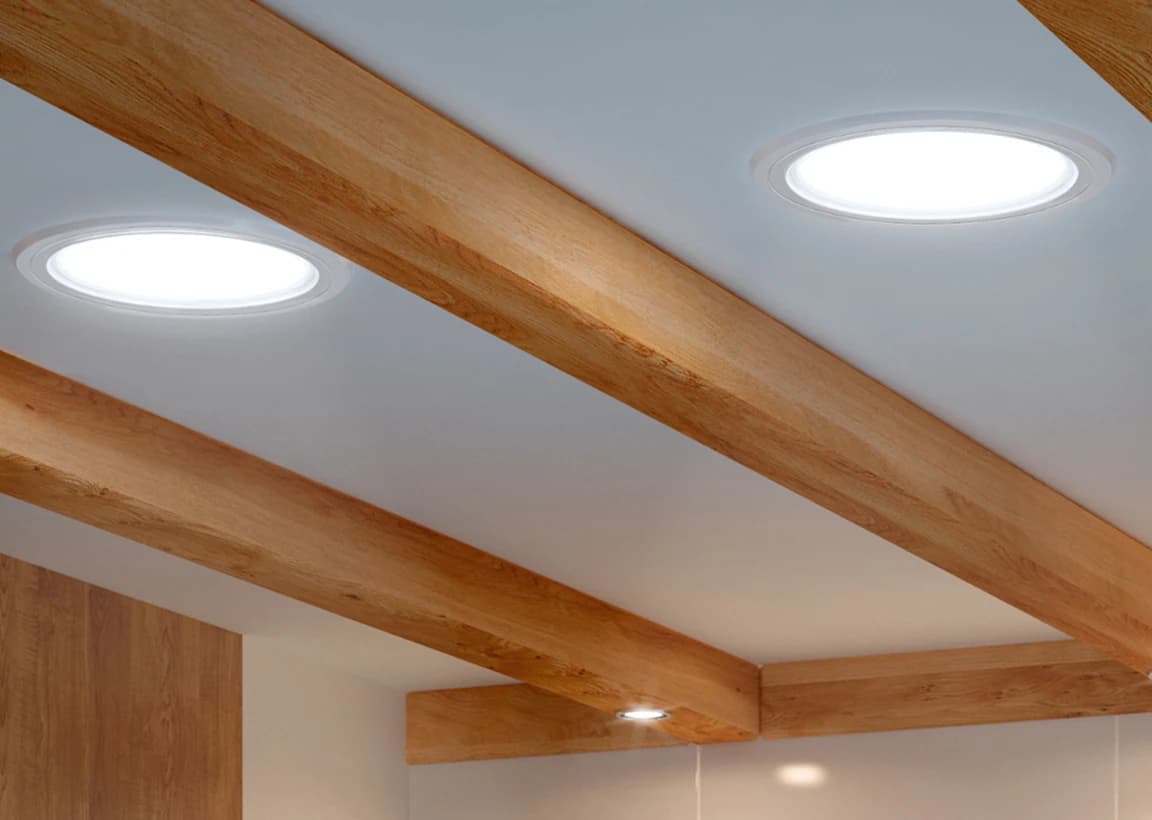

The SFD-S light tunnel system is finished with a ceiling diffuser that gently distributes light throughout the room. Its prismatic, matt shade eliminates sharp shadows and spot reflections, creating a pleasant, even brightness. The diffuser is the visible part of the system from the interior and also serves a decorative function. It can be equipped with an additional SLO light source, which allows rooms to be illuminated even after dark.

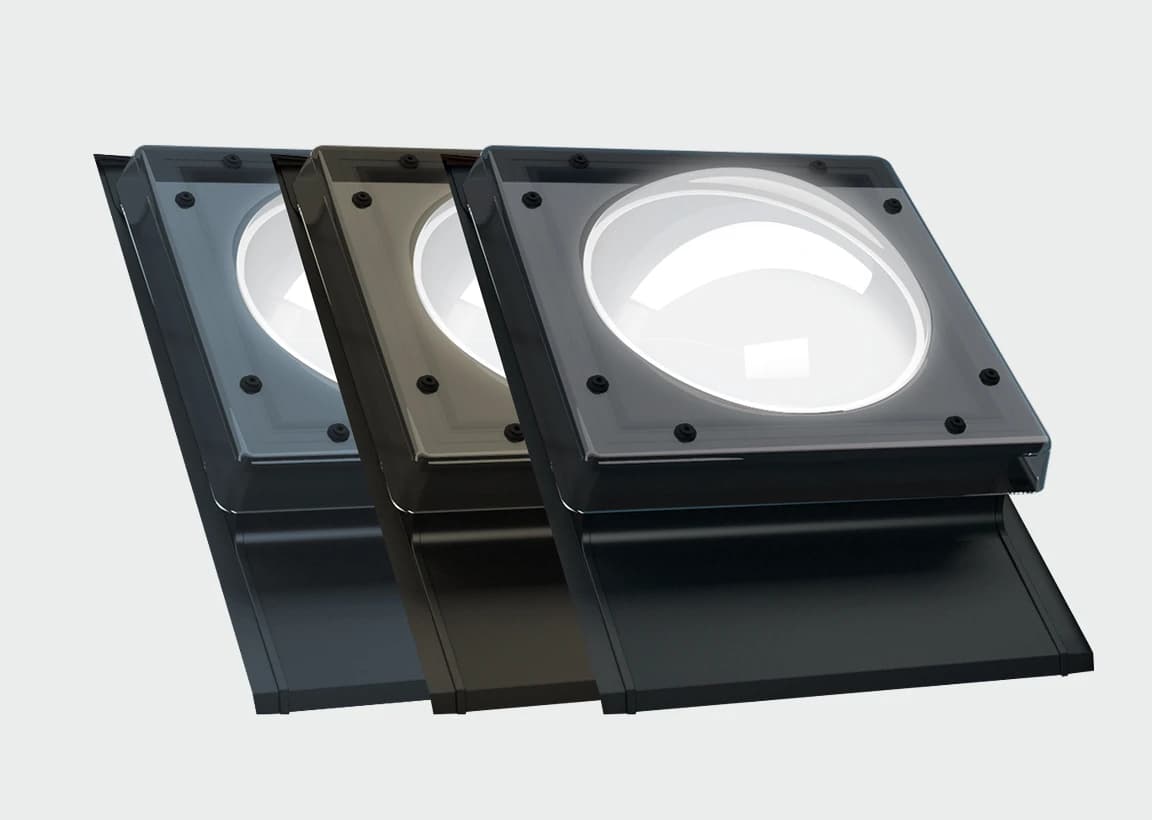

External cladding
The external cladding of the light tunnel provides durable protection of the structure against water, wind and changing weather conditions. Made of corrosion‑resistant sheet metal, it features an integrated flashing that ensures a watertight connection with the roof surface without the need for additional mounting elements. The grey‑brown RAL 7022 finish blends harmoniously with modern roofing materials, giving the structure an aesthetically pleasing appearance.
Characteristic features
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Natural light where there are no windows
Light tunnels bring natural daylight into rooms without traditional windows, such as corridors, bathrooms, and dressing rooms. They make interiors brighter and more pleasant for everyday use.
Effective illumination

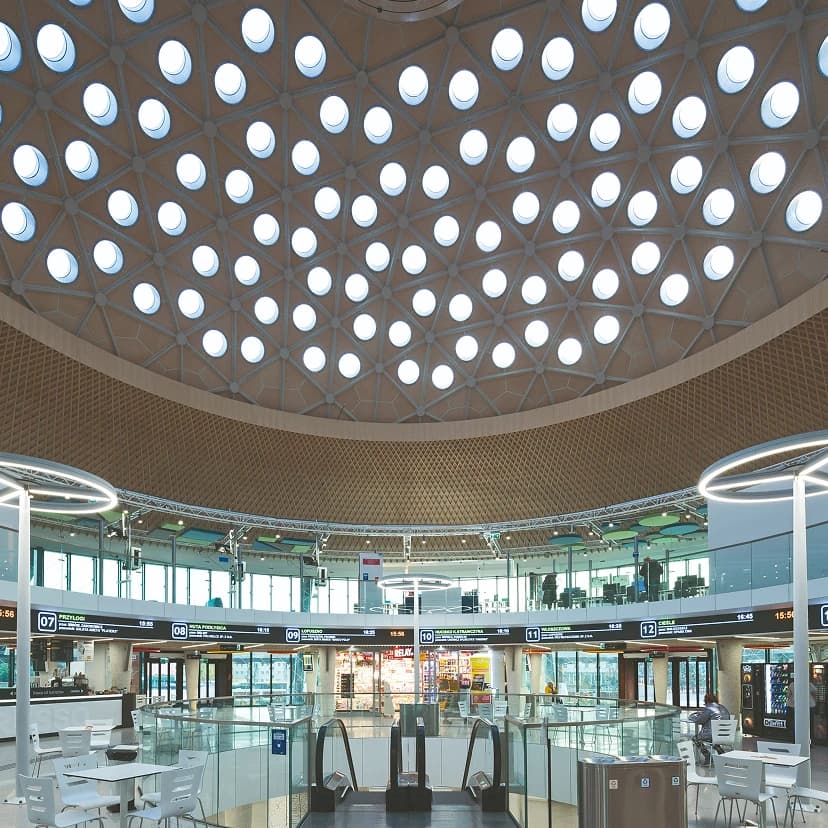

Applying specially designed light transmitting tubes allowed light tunnels to transmit daylight even several metres into the room. With this solution, high quality lighting can be maintained even in more complex roof structures.
Universal installation
Light tunnels are suitable for installation on various types of roofing, both flat and pitched. Their robust construction and carefully crafted details ensure reliable operation and aesthetic appeal for years to come.
Specification SFD-S
