EDD-C
Prefabricated dormer

EDD-C

Where to buy
Size:

Panoramic glazing illuminating the interior

Two opening lower windows for ventilation

Easy installation

EDD-C
EDD-C - Descriptions[0]

Prefabricated dormer EDD-C

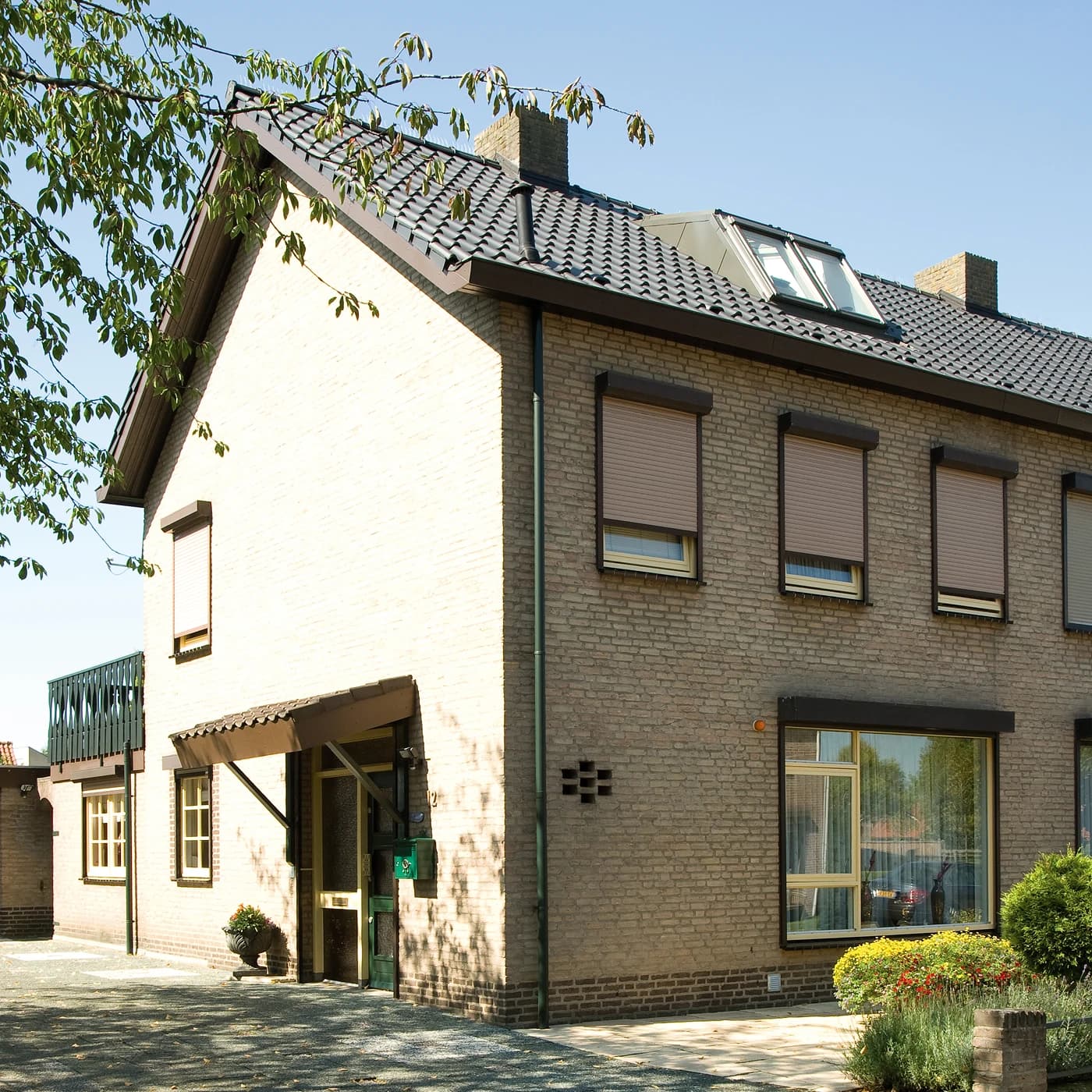

The prefabricated dormer installed in the roof slope combines functionality with an elegant form, giving the attic a new dimension full of natural light and space. The lower section of the EDD-C features two roof windows (78x118 cm), while the upper one is filled with wide, non-opening glazing (166x118 cm), creating a panoramic lighting effect. This design visually enlarges the room and emphasises its character. The entire structure is finished in an elegant RAL 7016 colour, which blends perfectly with most roofing materials and contemporary façades.

EDD-C - Descriptions[1]

Durable structure and easy installation

Installation does not require the use of a crane, simplifying the entire process and reducing labour costs. The structure is suitable for roofs with pitches from 35° to 70°, and the materials used guarantee durability and aesthetics for years to come. The EDD-C model blends in harmoniously with the other roof elements and is fully compatible with FAKRO accessories, both internal and external, allowing for individual customisation of the appearance and function of the attic.

Characteristic features of prefabricated dormers

Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.

More natural light

Large glazing brightens up the attic and improves everyday comfort. The interiors become visually larger and more pleasant.

Increasing functional space

The extended structure creates additional space for free movement. This increases the functionality of the attic and facilitates its arrangement.

Aesthetic finish of the roof surface

The modern form of the dormer emphasises the building's appearance. Carefully refined details create an elegant complement to the roof.

Specification EDD-C
All parameters refer to the selected size (78x118) using original assembly products

Rodzaj

Thermo
High profile up to 90 mm or 120 mm (H)

Wymiary

78x118 cm

Materiał i wygląd

Lead apron

Wyposażenie i akcesoria

Standard upper element, Standard lead apron, Standard middle element, Standard right side, Standard left side, Standard middle gutter, Frame side covering profiles_standard
Water drainage gutter, Roof rails, Insulation wedges, Installation set, Hooks, Insulation kit XDP, Fitting instructions, Insulation foam

Montaż

35 °
70 °

Informacje transportowe

106.33 kg
1.2 m
2.629 m
0.59 m
Pobierz specyfikację
