Heat transfer coefficient Uw=0.64 W/m²K
Suitable for installation on pitches from 2° to 15°
Convenient operation with the included ZRH1 remote control
Suitable for installation on an additional XRD or XRD/W base
![DEF DU8 Z-Wave with ZRH1 remote control - Descriptions[0]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520do%252520dach%2525C3%2525B3w%252520p%2525C5%252582askich%2FOkna%252520%252520typu%252520F%2FDEF%252520DU8%252520Z-Wave%252520ZRH1%252520DEF%252520DU8_C0J%2Fdef-du8-z-wave-zrh1-02.webp&w=1920&q=75)

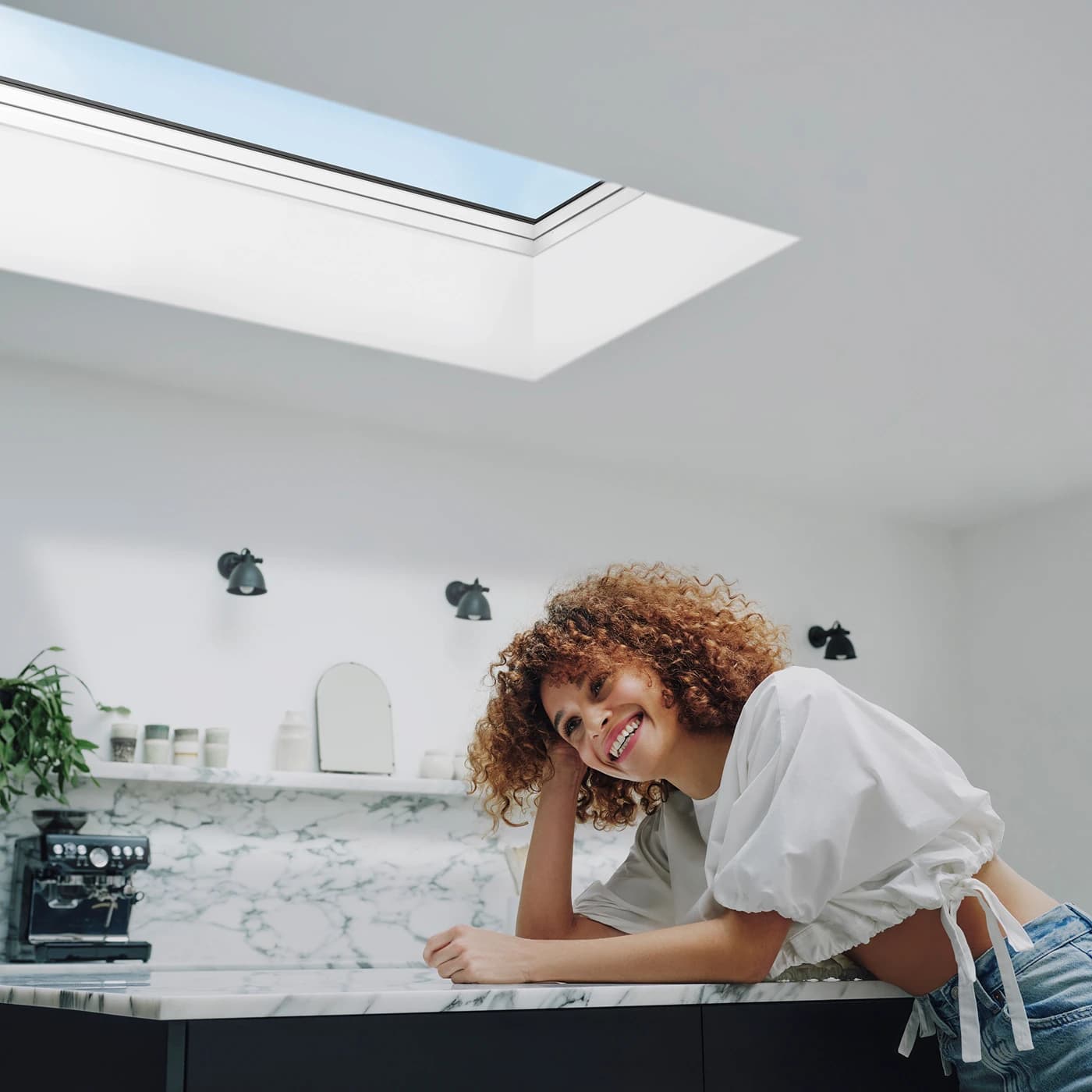

Flat roof window DEF DU8 Z-Wave with ZRH1 remote control
Brighten your interior with the DEF DU8 Z‑Wave window, designed specifically for flat roofs and combining convenience, elegance and excellent performance. It is an ideal choice for rooms where natural light and airtightness are a priority. The DU8 glazing unit ensures safety and excellent thermal insulation, while the large glazing area visually enlarges the space. Multi‑chamber PVC profiles filled with insulation provide durability and resistance to weather conditions. The flat design with an elegant glass segment emphasizes the modern character of the building, blending aesthetics with functionality.
![DEF DU8 Z-Wave with ZRH1 remote control - Descriptions[1]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520do%252520dach%2525C3%2525B3w%252520p%2525C5%252582askich%2F%252521%252520Opisy%2Fz-wave.webp&w=1920&q=75)
Comfortable operation and all-weather durability
The DEF DU8 Z‑Wave model allows the sash to open up to 12 cm using the ZRH1 remote control, significantly enhancing everyday convenience. The rain sensor automatically closes the sash during precipitation, protecting the interior from moisture.
The four‑pane DU8 glazing unit ensures excellent thermal insulation — Uw = 0.64 W/m²K — reducing heat loss in winter and preventing overheating in summer. The toughened outer pane, laminated inner pane (P2A class) and multi‑chamber PVC profiles filled with insulation ensure durability and safety in all weather conditions.
![DEF DU8 Z-Wave with ZRH1 remote control - Descriptions[2]](/_next/image?url=https%3A%2F%2Fcdn-pim.gofakro.com%2F%2FStrony%252520WWW%2FOkna%252520do%252520dach%2525C3%2525B3w%252520p%2525C5%252582askich%2FOkna%252520%252520typu%252520F%2F%252521%252520Opisy%2F01.webp&w=1920&q=75)
Praktyczne rozwiązanie dla dachów płaskich
Okno DEF DU8 Z-Wave przeznaczone jest do montażu na dachach płaskich o kącie nachylenia od 2° do 15°. Jeżeli kąt nachylenia dachu jest mniejszy niż 2° lub wskazane jest zwiększenie kąta montażu, należy zastosować kątową ramę montażową XRD-A. W przypadku dachów zielonych, żwirowych lub wentylowanych można zastosować podstawy montażowe XRD oraz XRD/W, które podnoszą okno ponad warstwy wykończeniowe i ułatwiają prawidłowy odpływ wody. Prosta, elegancka forma okna DEF doskonale komponuje się z nowoczesną architekturą. Okno można wyposażyć w akcesoria wewnętrzne oraz markizę zewnętrzną ograniczającą nagrzewanie.
See details of this product
Glass with steppe
The D_F flat roof window combines functionality with elegant design inspired by contemporary architecture. The standard version features glass with a black steppe, which emphasises its minimalist character and blends in perfectly with the structure of modern buildings. Additionally, the window is available in the ColourLine version, which allows for personalisation thanks to a wide range of 200 RAL Classic colours, ensuring consistency with the roof colour and the character of the building.
Glazing unit DU8
The DU8 triple-chamber glazing unit is a solution dedicated to passive construction. Thanks to its exceptionally low heat transfer coefficient of 0.64 W/m²K for the entire window, it effectively reduces heat energy loss. The internal P2A laminated glass ensures a high level of safety, protecting the interior in the case of breakage. The external toughened glass is covered by a lifetime hail resistance warranty, which guarantees durability and reliability in all weather conditions.
Frame
The window structure is based on a frame made of white PVC profiles (RAL 9010) with a multi-chamber design, filled with insulating material. As a result the frame is highly resistant to moisture and cleaning agents, which makes it ideal for rooms with high humidity, such as bathrooms or laundry rooms. The entire structure is durable and requires no regular maintenance, and its light colour scheme makes it easy to match with a variety of interior designs.
Actuator
The window is equipped with the ZWS12 electric actuator, which ensures smooth and quiet opening and closing of the sash. The device operates in the Z-Wave wireless system, which allows for remote control using the ZRH1 remote control. The maximum sash tilt is 12 cm, ensuring effective room ventilation. The actuator’s robust design guarantees reliable operation and a long service life, while the option of integration with home automation systems increases the comfort of everyday use.
Rain sensor
When rainfall is detected, the ZRD rain sensor mounted on the window sash sends a signal to the actuator, triggering the automatic closure of the roof window. The rain sensor is a practical, convenient solution that increases safety and comfort in everyday use. It is maintenance-free, requires no programming and effectively protects the interior from flooding, even when the occupants are away.
Remote control
Designed with user comfort in mind, the compact Z-Wave radio controller allows you to control a single group of devices, to which you can add up to 12 roof windows. The ZRH1 remote control stands out with its minimalist design, which fits perfectly into modern interiors, and its simplicity and reliability make everyday window control quick and comfortable.
Characteristic features
Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.
Maximum interior daylighting
Modern buildings with flat roofs do not have to mean limited access to natural daylight, as the use of properly designed windows allows interior spaces to be effectively illuminated. Thanks to specially engineered profile construction, the glazed area can be increased by up to 16%, resulting in noticeably brighter and more comfortable interiors.
Structural durability
Flat roof windows are equipped with advanced glazing units, in which the external pane is made of toughened glass, while the internal pane features P2A safety classification. This solution increases resistance to damage and, in the event of glass breakage, significantly reduces the risk of hazardous fragments.
Year‑round comfort of use
A stable frame made of multi‑chamber PVC profiles filled with thermal insulation material helps maintain proper indoor conditions inside the building. In practice, this results in improved user comfort, especially when replacing older solutions with modern windows offering enhanced performance parameters.
Specification DEF DU8 Z-Wave with ZRH1 remote control
