DEC-M U8 (VSG) Z-Wave
Type C windows

DEC-M U8 (VSG) Z-Wave

Where to buy
Size:

Heat transfer coefficient Uw=0.7 W/m²K

Matt polycarbonate dome

Suitable for installation on pitches from 0° to 15°

Wirelessly controlled via remote control

DEC-M U8 (VSG) Z-Wave - Descriptions[0]

Flat roof window DEC-M U8 (VSG) Z-Wave

Designed with everyday comfort in mind, the DEC-M U8 (VSG) Z-Wave model is a product intended for spaces where natural lighting and structural reliability are important. This electrically operated flat roof window is ideal for spaces where vertical windows cannot be installed due to the building’s layout. The matt dome diffuses the light, introducing a soft, gentle brightness into the interior without harsh reflections. Combined with a carefully selected glazing unit, it creates a pleasant, comfortable environment in rooms without traditional light sources.

DEC-M U8 (VSG) Z-Wave - Descriptions[1]

Electric control and rain protection

The DEC-M U8 (VSG) Z-Wave window has been designed as a functional element of roof joinery, featuring electric opening option. It is controlled by a switch or remote control, allowing the sash to be tilted up to 12 cm, which enables effective room ventilation. The set includes a power supply unit and a rain sensor that automatically closes the window when first rain drops appear, ensuring comfort and safety of use. Thanks to Z-Wave radio technology, control is wireless, allowing the window to be integrated with a Smart Home system via a dedicated gateway.

DEC-M U8 (VSG) Z-Wave - Descriptions[2]

Functional solution for flat roofs

The electrically operated DEC-M U8 (VSG) Z-Wave window is designed for installation on flat roofs with pitches from 0° to 15°. It is also possible to use the XRD and XRD/W installation base, which allows the window to be raised and installed on green, gravel or ventilated roofs. Its simple design means that the product fits in with a variety of architectural styles and blends in perfectly with modern, minimalist spaces. The window can be equipped with internal accessories and an external awning blind, enhancing the comfort of the attic space.

See details of this product

Dome

The window canopy is made of durable polycarbonate, which is highly resistant to impact and adverse weather conditions. Its matt structure allows the interior to be illuminated with soft, diffused light while simultaneously limiting the penetration of harmful UV radiation. Additional protective coatings applied to both sides of the surface increase the material’s durability and ensure an aesthetic appearance for a long period of use.

Glazing unit U8

The window features a passive, triple-chamber U8 glazing unit filled with noble gas - krypton. The internal P2A class laminated glass provides a basic level of protection against forced entry. The outer toughened glass is covered by a lifetime hail resistance warranty, increasing the level of safety and reliability even in harsh weather conditions. The entire window has a heat transfer coefficient rated at 0.72 W/m²K, ensuring very good thermal insulation.

Frame

The window structure is based on a frame made of white PVC profiles (RAL 9010) with a multi-chamber design filled with insulating material. As a result, the frame is highly resistant to moisture, which makes it ideal for rooms with high humidity, such as bathrooms or laundry rooms. The entire structure is durable and does not require regular maintenance, and its light colour scheme makes it easy to match with a variety of interior designs.

Actuator

The integrated electric drive operating in Z-Wave technology ensures comfortable everyday use, enabling convenient remote operation with both a remote control and a wall switch. The sash can be opened to 120 mm, allowing for effective ventilation. The durable construction of the mechanism ensures a long service life, and the possibility of integration with home automation further enhances user comfort.

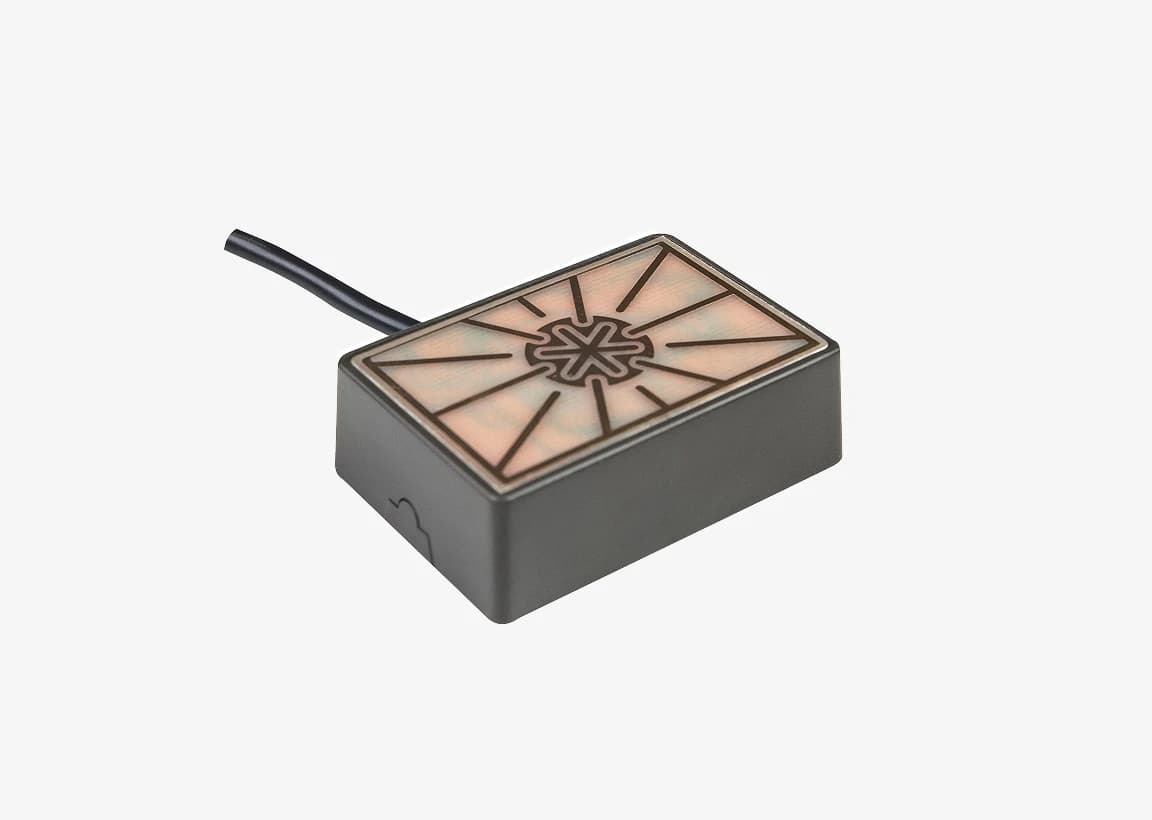

Rain sensor

When rainfall is detected, the ZRD rain sensor mounted on the window sash sends a signal to the actuator, triggering the automatic closure of the roof window. The rain sensor is a practical, convenient solution that increases safety and comfort in everyday use. It is maintenance-free, requires no programming and effectively protects the interior from flooding, even when the occupants are away.

Characteristic features of flat roof windows type C

Our products stand out for what truly matters. Discover the features that make them reliable and exceptional in everyday use.

Interior lighting

The use of polycarbonate domes allows natural light to be effectively brought into rooms located under a flat roof. The transparent surface and protective coatings reduce UV radiation penetration and maintain the product's aesthetic appeal for a long time.

Safety of use

Toughened external glass and P2A class laminated internal glass provide effective protection against mechanical damage, including hailstorms. The design of individual models meets high standards of durability and resistance, which translates into reliability in difficult weather conditions.

Energy-efficient design

PVC profiles with thermal insulation filling and carefully selected glazing units reduce heat loss, supporting thermal comfort in the building. The insulation parameters reach levels suitable for both standard construction and houses with increased energy requirements.

Specification DEC-M U8 (VSG) Z-Wave
All parameters refer to the selected size (60x60) using original assembly products

Wymiary

820 mm
820 mm
60x60 cm
820 mm
820 mm
517 mm
517 mm
476 mm
476 mm
558 mm
558 mm

Materiał i wygląd

PVC white
wielokomorowy profil uPVC

Otwieranie i sterowanie

Z-Wave control
No
ZWS12
ZRH1

Izolacja termiczna

3 szt.
0.72 W/m2K
Class 4

Bezpieczeństwo

Compliant
No

Izolacja akustyczna

36 dB

Wyposażenie i akcesoria

1 electric
ZRH1 remote control

Montaż

0° - 15°

Informacje transportowe

52 kg
0.91 m
0.92 m
0.37 m
Pobierz specyfikację
Zobacz, jakie dodatki pasują do tego produktu

Find where to buy this product

Locate your nearest distributor on the map.

Need help with installation?

Find a trusted professional near you.

Instructions and downloads

Instrukcje

Certyfikaty i deklaracje

  • EU/EC Declaration of Conformity
    PDF
    Pobierz
  • EPD_FAKRO_10.11.2023_okna do dachów płaskich_EN.pdf
    PDF
    Pobierz
  • EPD_FAKRO_10.11.2023_okna do dachów płaskich_PL.pdf
    PDF
    Pobierz
  • Świadectwo EPD - FAKRO - okna dach płaski_PL_EN.pdf
    PDF
    Pobierz
For professionals

Informacje logistyczne

80FN01
60x60 cm
60x60 cm
1 szt.

Instrukcje

  • installation_instructions_NC_1B8_DEC_mobileJPG.pdf
